Solenoide Valve Model: WD40L(1-1/2")-N-5-AC220V / Type 2/2 way NC, NBR Seal, For Water, Air, G

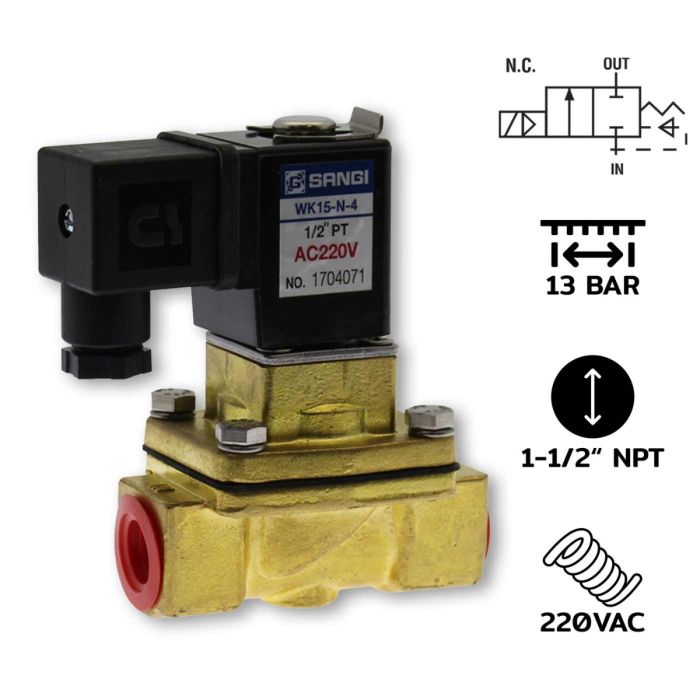

Product Details of Solenoid Valve Model : WD40L(1-1/2")-N-5-AC220V / Diaphragm Type 2/2 way NC,NBR Seal,For Water, Air,G

The Diaphragm Type Solenoid Valve (Solenoid Valve Diaphragm Type) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as plumbing systems, irrigation systems, compressed air systems, and various industries.

How a Diaphragm Solenoid Valve Works

Main Components

• Solenoid Coil (Electromagnetic Wire Winding): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Lifted or lowered by the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens and closes fluid pathways.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operating Mode

Normal Closed (NC) – Normally Closed

• No electricity → Plunger closes the pilot port → Pressure on both sides of the diaphragm is equal → Diaphragm keeps the valve closed.
• Electricity applied → Plunger is pulled up → Pilot port opens → Pressure above the diaphragm decreases → Fluid from below pushes the diaphragm up → Valve opens.

Normal Open (NO) – Normally Open

• The principle is similar but reversed in terms of pressure → Without electricity, valve is open; with electricity applied, valve closes.

Advantages of Diaphragm Valves

• Quick opening and closing.
• No leakage (as the diaphragm does not wear out like other types of valves).
• Easy to maintain.
• Suitable for clean fluids such as water, air.

Usage Details

• Drinking water systems – Controls water in filtration machines and cold water dispensers.
• Automatic irrigation system – Opens and closes the water supply according to schedule.
• Food/Pharmaceutical industry – Used with clean fluids that require precise control.
• Pneumatic system (compressed air) – Controls the supply of compressed air in machinery.
• Home appliances such as washing machines, coffee makers.

Technical Data Solenoid Valve Model : WD40L(1-1/2")-N-5-AC220V / Diaphragm Type 2/2 way NC,NBR Seal,For Water, Air,G
