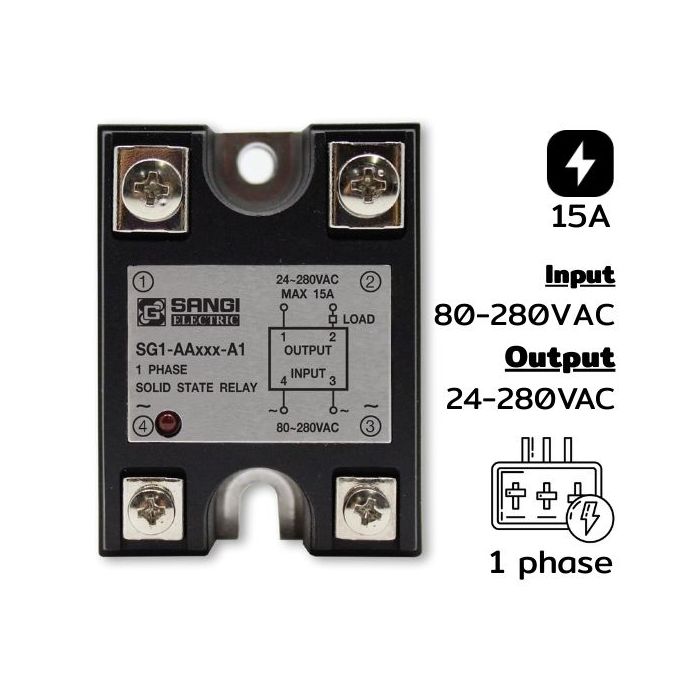

SG1-AA015-A1 Single phases Input 80-280VAC Output 24-280VAC 15A Zero C

Details of Solid State Relay Single Phase Input AC Output VAC (Solid State Relay Single Phase Input AC Output VAC)

SG1-AA015-A1 Single phases Input 80-280VAC Output 24-280VAC Current 15A Zero C Solid State Relay Single Phase (Input AC, Output AC) – Working Principle and Features The working principle of a Solid State Relay with an AC input and AC output is to control the switching of AC loads using an alternating current control signal (AC Control Signal)

Main Components

• Input AC (e.g., 90–280VAC): Receives AC control signals.
• Opto-Isolator: Separates the control signal from the power circuit for safety.
• Trigger Circuit: When a control signal is received, it activates the drive circuit to operate the power section.
• Output AC (e.g., 24–480VAC): Controls the delivery of current to loads such as heaters, motors, and lamps.

Type Input Voltage Control AC (e.g. 90-280VAC)

• Output Type: Alternating Current Load (AC Load: 24–480VAC or 24–240VAC depending on the model).
• Frequency: 50/60Hz.
• Loading Capacity: Typically supports from 2A to 100A (depending on the model and Heat Sink).
• Cooling: Must use a Heat Sink or fan in cases of high current loads.
• Isolation: Prevents signal interference and enhances installation safety, usually DIN Rail or mounting plate type.
• Response Time: Approximately 1–2 milliseconds.

Advantages

• No moving parts – No wear and tear.
• Silent operation.
• Durable against vibration and dust.
• Precise and fast load control.
• Long service life.

Cautions

• Select the SSR appropriately for the load and operating voltage.
• Avoid leakage current issues that may occur when the SSR is in the "off" state.
• Temperature: Proper cooling must be ensured, otherwise the equipment may be damaged.
• Control electric heaters in oven systems, lighting systems, industrial machinery systems, automatic temperature control systems, motor control systems (loads not exceeding specified capacity).

Tech Data Solid State Relay Single Phase Input AC Output VAC (Solid State Relay Single Phase Input AC Output VAC)
