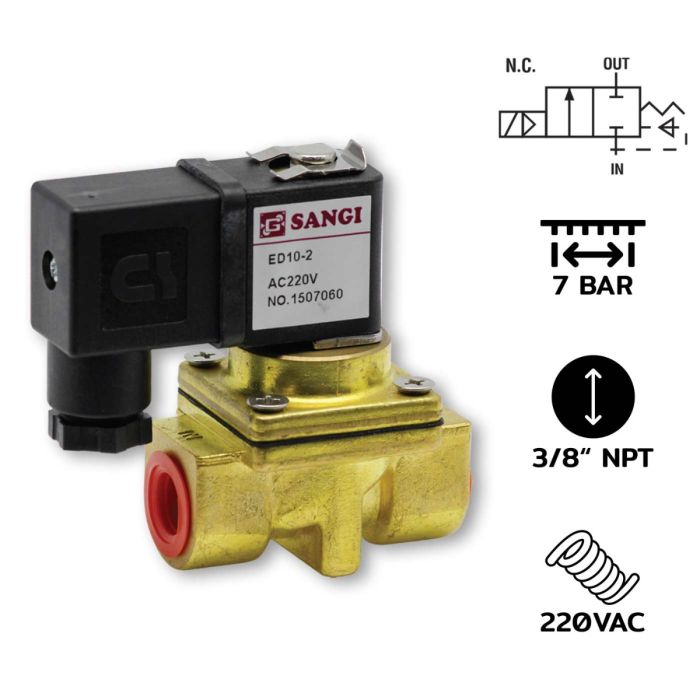

ED10(3/8")-2-AC220V / 2/2 way NC,NBR Seal,For Water, Air,Gas Li

Details of ED10(3/8")-2-AC220V / Diaphragm Type 2/2 way NC, NBR Seal, For Water, Air, Gas Li

The Diaphragm Solenoid Valve (Solenoid Valve Diaphragm Type) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as water supply systems, irrigation systems, compressed air systems, and various industries.

How Solenoid Valve Diaphragm Type Works

Main Components

• Solenoid Coil (Electromagnetic Wire Winding): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Moves up and down with the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens and closes the liquid flow path.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operating Mode

Normal Closed (NC) – Normally Closed

• No power → Plunger closes pilot port → Pressure on both sides of diaphragm is equal → Diaphragm closes valve
• Power applied → Plunger is drawn up → Pilot port opens → Pressure above diaphragm decreases → Fluid from below pushes diaphragm up → Valve opens

Normal Open (NO) – Normally Open

• Similar principle but reversed pressure side → No power valve is open, with power valve closes

Advantages of Diaphragm Valve

• Quick opening and closing
• No leakage (because diaphragm does not wear like other valves)
• Easy maintenance
• Suitable for clean liquids such as water, air

Usage Details

• Drinking water system used to control water in filters and cold water machines
• Automatic watering system opens and closes water according to schedule
• Food/Pharmaceutical industry used with clean liquids that need precise control
• Pneumatic system controls air supply in machinery
• Home appliances such as washing machines, coffee makers

Technical Data ED10(3/8")-2-AC220V / Diaphragm Type 2/2 way NC,NBR Seal,For Water, Air,Gas Li
