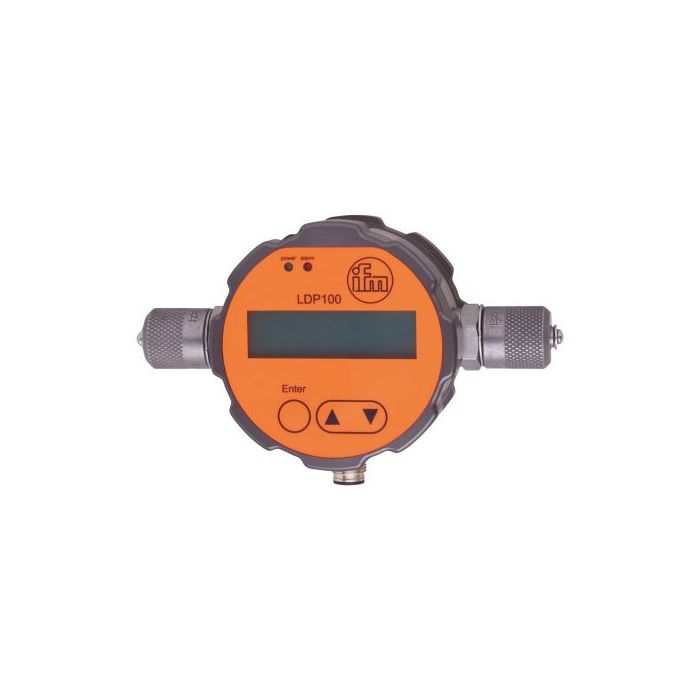

LDP100 \ efector 160 \ Level sensor \ OIL PARTICLE MONITOR \ DE

Details of LDP100 \ efector 160 \ Level sensor (Oil Particle Monitor) \OIL PARTICLE MONITOR \ DE

LDP100 \ efector 160 \ Level sensor (Oil Particle Monitor) \OIL PARTICLE MONITOR \ DE from ifm, which is an oil quality monitoring sensor that detects particles or contaminants in the oil and has two outputs: OUT1 = Analog 4...20mA and OUT2 = Switching

Technical Data LDP100 \ efector 160 \ Level sensor (Oil Particle Monitor) \OIL PARTICLE MONITOR \ DE

• Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
• Process connection threaded connection M16 x 2 external thread Minimess
• Media mineral oils (e.g. HLP); ester oils (e.g. HEES); biodegradable oils (e.g. HETG)
• Oil Medium temperature[°C] -10...80
• Operating voltage[V] 9...33 DC
• Current consumption[mA] < 300
• Protection class III
• Measuring principle photoelectric
• Measuring range 0...28; (range number)
• Weight[g] 816.6
• Materials (wetted parts) housing: stainless steel (420/1.4028); sight glass: sapphire chromium-plated; Sealing: NBR
