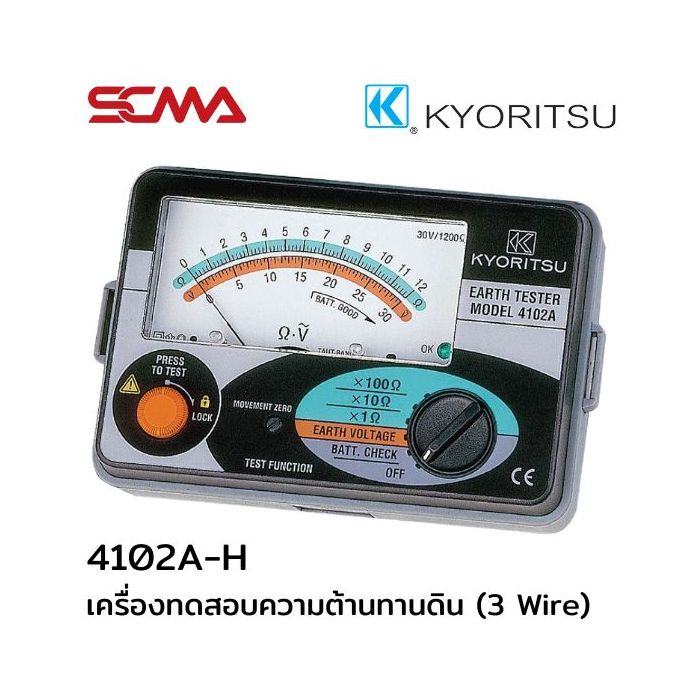

4102A-H KYORITSU 3 Wire Analog Earth Testers

Features of 4102A-H KYORITSU Earth Resistance Tester (3 Wire Analog Earth Testers)

• 4102A-H KYORITSU Earth Resistance Tester (3 Wire Analog Earth Testers) Measurement Range : 12Ω / 120Ω / 1200Ω
• Can measure earth line voltage from 0-30VAC (50/60Hz)
• Directly read earth resistance values from the scale
• Compact and lightweight, meter made of new impact-resistant material
• Test current does not exceed 2mA, which will not trigger a leakage current breaker to trip the circuit
• Has an "OK" lamp that lights up when the connection between the tester and earth ground is correct and complete
• Waterproof and dust-resistant according to IEC 60529 IP54 standard
• Designed according to the safety standard IEC61010-1

Technical Data 4102A-H KYORITSU Earth Resistance Tester (3 Wire Analog Earth Testers)

• Measurement ranges : Earth Resistance : 0~12Ω / 0~120Ω / 0~1200Ω, Earth Voltage : 0~30VAC (50/60Hz)
• Accuracy : Earth Resistance : ±3% of full scale / Earth Voltage : ±3% of full scale
• Overload protection : Earth Resistance : 276VAC for 10 seconds across 2 of the 3 terminals / Earth Voltage : 276VAC (1 minute)
• Applicable standards : IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 IEC 60529 IP54
• Power source : R6 (AA) (1.5V) x 6
• Dimensions / Weight : 105(L) x 158(W) x 70(D)mm / 600g approx
• Included Accessories : 7095A (Earth resistance test leads) x 1set (red-20m, yellow-10m, green-5m), 8032 (Auxiliary earth spikes) x 1set, 7127A (Simplified measurement probe) x 1set, R6 (AA) x 6, 9121 (Shoulder strap)
