2033 KYORITSU AC/DC Clamp meters

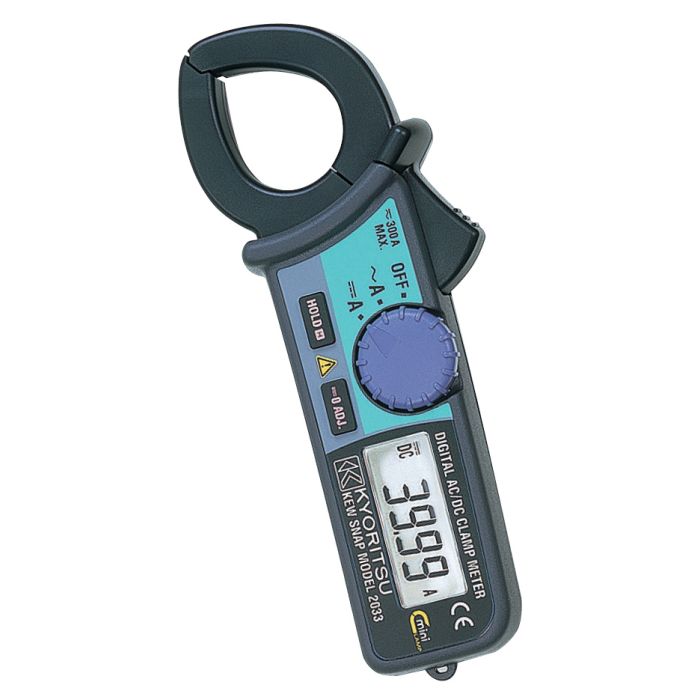

KYORITSU Clamp Meter Model 2033 Features

• Compact and portable, measures both AC and DC current
• Measures up to 300A with a resolution of 0.01A for both AC and DC
• Auto Zero Amp setting when pressing the "OADJ" button

KYORITSU Clamp Meter Model 2033 Technical Data

• AC A : 40 / 300A : 0~40A ±1%rdg ±4dgt (50/60Hz), ±2.5%rdg ±4dgt (20Hz~1kHz) / 20~200A ±1.5%rdg ±4dgt (50/60Hz), ±2.5%rdg ±4dgt (20Hz~1kHz) / 200~300A ±3.5%rdg (50/60Hz), ±4%rdg (20Hz~1kHz)
• DC A : 40 / 300A : 0~±40A ±1%rdg ±4dgt / ±20~200A ±1.5%rdg ±4dgt / ±200~±300A ±3%rdg
• Conductor size : 24mm max.
• Frequency response : DC, 20Hz~1kHz
• Safety Standard : IEC 61010-1 CAT III 300V, IEC 61010-2-032
• Power source : LR-44 (1.5V) x 2
• Dimensions / Weight : 147(L) x 59(W) x 25(D)mm / 100g approx.
• Included Accessories : 9090 (Carrying Case), LR-44 x 2, Instruction Manual
