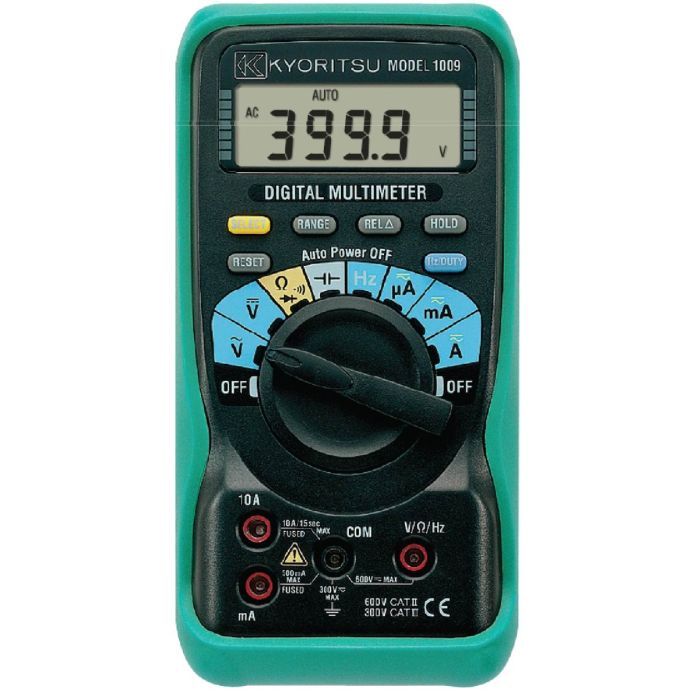

1009 KYORITSU Digital Multimeters

Details of KYORITSU Digital Multimeters Model 1009

The KYORITSU Digital Multimeter model 1009 features an LCD display capable of showing up to 4000 digits, allowing for current measurement up to 10A in both AC and DC. This unit comes with automatic range switching or manual range selection (with hold function). The resistance measuring range includes a continuity buzzer that sounds below 100Ω. It also features an auto-off function after 30 minutes of non-use, extending battery life. Additionally, the rubber bumper around the device ensures good usability in various environments.

Technical Specifications of KYORITSU Digital Multimeters Model 1009

• DC V 400mV / 4mV / 40mV / 400V ±0.6%rdg +4dgt / 600V ±1.0%rdg ±4dgt
• AC V 20-400mV ±1.6%rdg ±4dgt / 4V / 40V ±1.3%rdg +4dgt / 400V / 600V ±1.6%rdg ±4dgt
• DC A 400μA / 4000μA ±2.0%rdg ±4dgt / 40mA / 400mA ±1.0%rdg ±4dgt / (4A / 10A ±1.6%rdg ±4dgt
• AC A 400μA / 4000μA ±2.6%rdg ±4dgt / 40mA / 400mA / 4A / 10A ±2.0%rdg +4dgt
• Ω 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±1.0%rdg ±4dgt / 40MΩ ±2.0%rdg ±4dgt
• Continuity buzzer 400Ω (Buzzer sounds below 100Ω)
• Diode test 1.5V Release Voltage:Approx. 0.4mA Test Current
• Capacitance 40nF / 400nF / 4μF / 40μF / 100μF
• Frequency 5.12Hz / 51.2Hz / 512Hz / 5.12kHz / 51.2kHz / 512kHz / 5.12MHz / 10MHz
• DUTY 0.1~99.9% (Pulse width/Pulse period) ±2.5% ±15dgt
• Applicable standards IEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326
• Power source R6 (1.5V) x 2
• Included Accessories 7066A (Test leads), 8919 (Ceramic fuse [10/600VI) x 1, 8923 (Fuse (0.5A/600) x 1, R6(AA) X2, Instruction Manual
