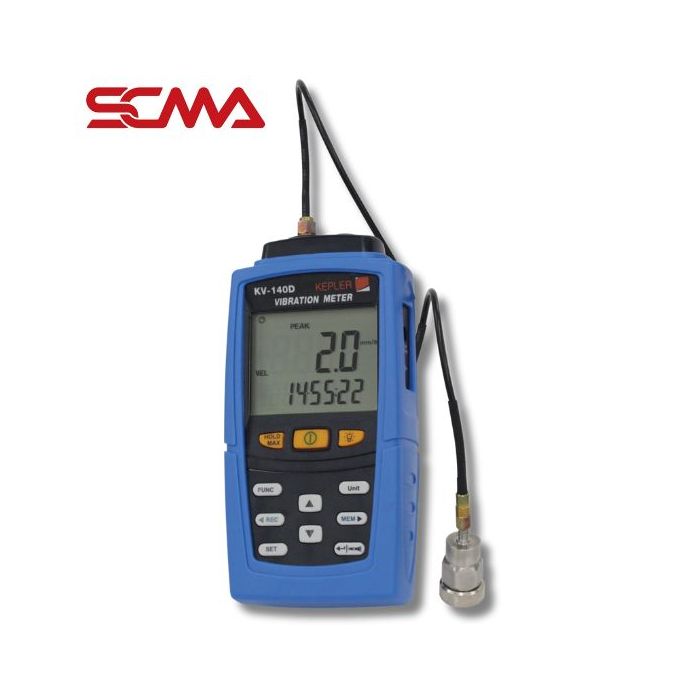

KV-140D KEPLER Vibration Tester

Details of KV-140D KEPLER Vibration Tester - Shaker and Vibration Measurement Device

The KV-140D KEPLER Vibration Tester is a comprehensive vibration measurement device that measures speed, acceleration, and displacement with precision and compactness. It is portable and convenient for use in various locations both indoors and outdoors.

• Measures speed, acceleration, and displacement all in one unit
• Vibration speed measurement range: 0.5~199.9mm/s
• Vibration acceleration measurement range: 0.5~199.9m/s2
• Vibration displacement measurement range: 0.005~1.999mm
• Speed test frequency range: 10Hz~1KHz
• Acceleration test frequency range: 10Hz~1KHz (LO), 10Hz~5KHz (HI)
• Vibration displacement test frequency range: 10Hz~1KHz
• Speed and acceleration measurement functions: RMS, Peak, Max Hold, Hold
• Vibration displacement measurement function: Peak-Peak, Max Hold, Hold
• Sensor manufactured according to ISO2954 standard for accurate measurements
• A 1.2-meter probe cable with a magnetic adapter for attaching to the sensor tip
• Data logger data recording frequency setting up to 9,999 values
• USB port for data transfer and report generation through software
• Metering resolution: 0.1m/s2, 0.01g, 1ft/s2, 0.1mm/s, 0.01cm/s, 0.01inch/s, 0.001mm, 0.001inch
• Zero adjustment function before use to ensure accurate measurement results
• Automatic power-off when not in use

Tech Specifications of KV-140D KEPLER Vibration Tester - Shaker and Vibration Measurement Device
