KP-LOG-P DATA LOGGER USB TOUCHSCREEN FOR KP-SERIES KEPLER

Special Price THB 11,400.00 Regular Price THB 15,200.00
Out of stock
SKU
031152
Out of stock

Delivery date: Within 30-45 days

Electric data recorder, Data Logger, USB Data Logger, Touchscreen Data Logger, RS485 Data Logger, Power Meter Data Logger, KP-Series Data Logger, KP-LOG-P, KEPLER

*Price does not include VAT

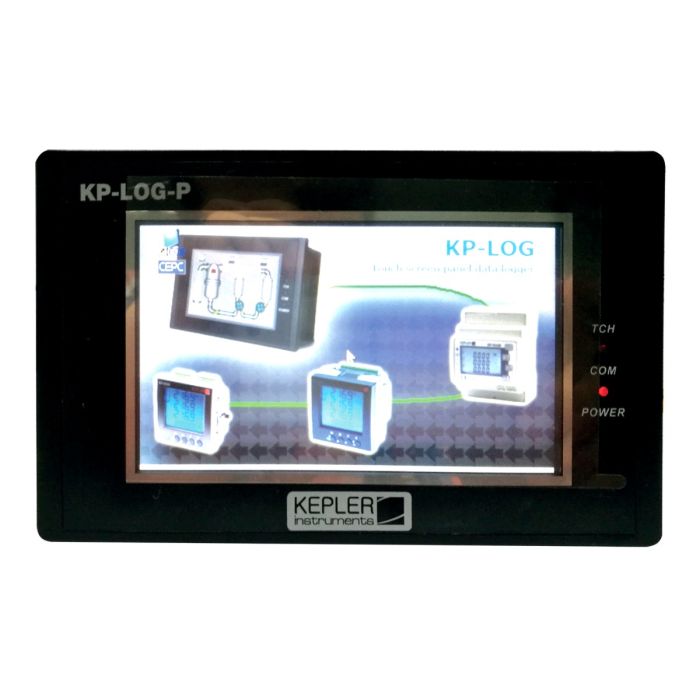

KP-LOG-P Data Logger USB Touchscreen for KP-Series – KEPLER

KEPLER KP-LOG-P is an electrical data logger designed to work with Power Meters in the KP-Series. It comes equipped with a Touch Screen display and supports RS-485 communication, allowing it to connect multiple meters to collect and log data for analysis on a computer.

Highlights

  • Data logging configuration through Touch Screen interface
  • Supports RS-485 communication
  • RS-485 communication distance up to 1200 meters
  • Compatible with KEPLER INSTRUMENTS Power Meters
  • Able to connect and log data from up to 9 measuring devices simultaneously
  • Address setting range: 01–09
  • Multiple levels of data logging time intervals can be set
  • Password system for preventing unauthorized configuration changes
  • Data is logged onto a Flash Drive and can be immediately transferred to a computer
  • Software available for converting and analyzing the recorded data
  • Data exportable in TXT and Excel file formats

Supported Power Meter Models

  • KP-835
  • KP-835S
  • KP-630D

Connectivity

  • Communication Interface: RS-485
  • Maximum Communication Distance: 1200 m
  • Maximum Connected Devices: 9 Units
  • Address Setting: 01–09

Data Logging Time Intervals

  • 3 Seconds
  • 5 Seconds
  • 10 Seconds
  • 30 Seconds
  • 1 Minute
  • 3 Minutes
  • 5 Minutes
  • 10 Minutes
  • 30 Minutes

Data Storage and Analysis

  • Data is logged onto a Flash Drive
  • Data can be transferred to a computer
  • Software available for converting recorded data
  • Supports exporting data as TXT file
  • Supports exporting data as Excel file

Security System

  • Password protection system to prevent unauthorized configuration changes

Dimensions and Weight

  • Dimensions: 142 × 86 × 40 mm
  • Weight: Approx. 290 g

Product Information

  • Model: KP-LOG-P
  • Product Type: Data Logger USB Touchscreen for KP-Series
  • Display: Touch Screen
  • Communication: RS-485
  • Communication Distance: Up to 1200 m
  • Connected Devices: Up to 9 Units
  • Data Storage: Flash Drive
  • Export Format: TXT / Excel
  • Dimensions: 142 × 86 × 40 mm
  • Weight: Approx. 290 g
  • Brand: KEPLER
