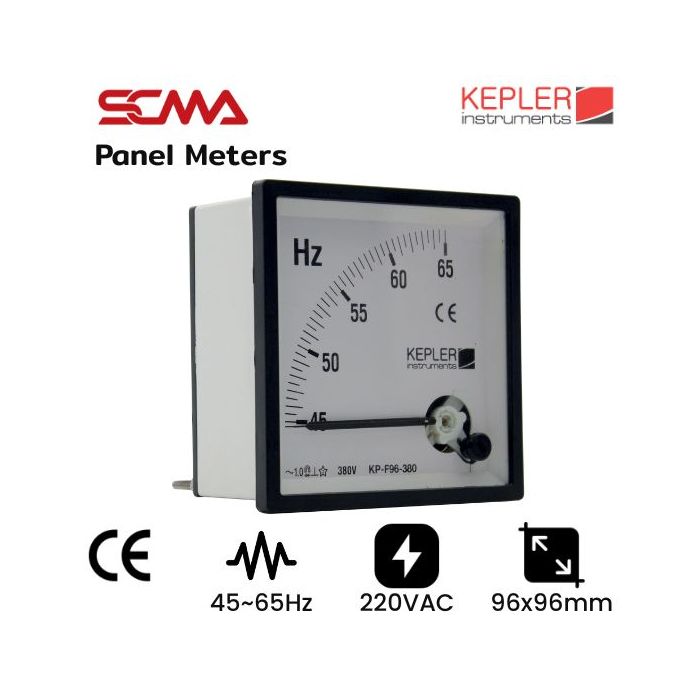

KP-F96-220 Analog Panel Frequency Meter

Details of KP-F96-220 Analog Panel Frequency Meter

• High accuracy Class 1.5
• Analog moving iron meter (Moving iron for instruments)
• The material of the meter is self-extinguishing UL94 grade ABS plastic
• Standard size: 96x96mm
• Operating temperature range: -25°C~+40°C
• Operating humidity range: 25%~80% RH (No condensation)
• Reference standards: EN60051, EN50081, EN50082, EN61010, IEC60051, IEC61010, DIN43780
• The meter is designed for installation in electrical control cabinets or switchboards specifically
• Suitable for use in various electrical systems such as electrical control rooms, MDB panels, substations, industrial factory control panels, buildings, and office buildings

Standard Measurement Range of KP-F96-220 Analog Panel Frequency Meter

• The KP-F96-220 model with a measurement range of 45~65Hz is suitable for use in single-phase AC systems at 220VAC
• The KP-F96-380 model with a measurement range of 45~65Hz is suitable for use in three-phase AC systems at 380VAC
