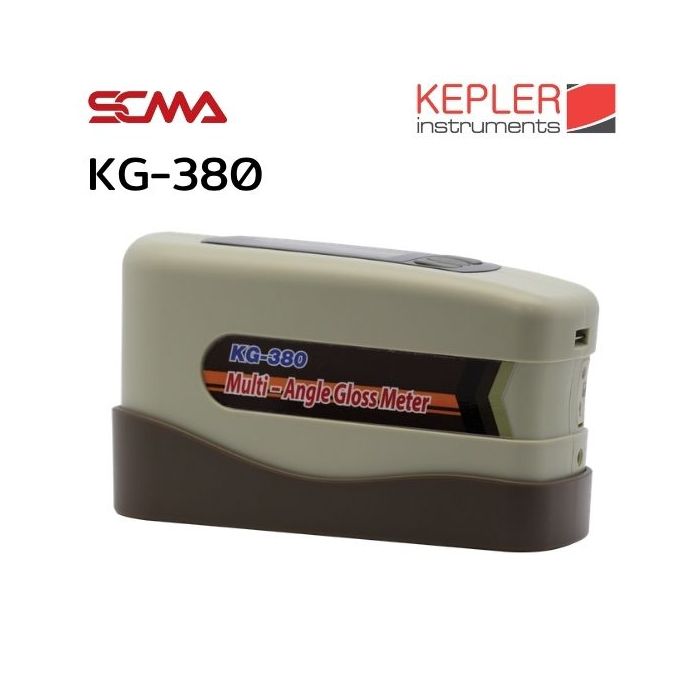

KG-380, Tri-Angle Gloss Meter

Details of KG-380, Three Angle Gloss Meter

The KG-380, a three-angle gloss meter that allows for selection of measurement angles at 3 different angles, with a resolution of 0.1 GU and an accuracy range of -1.5%~+1.5%. It can store up to 10,000 measurement values via SD Card and also has software for analysis and reporting through USB port. The device is designed to be suitable for all working conditions with high precision and stability in operation. It complies with ISO2813, ISO7668, ASTM D523, ASTM D2457 standards.

• Automatic calibration function
• Battery low or memory full warning sound
• Batteries 4 x AA 1.5V or 5VDC adapter power supply

Measurement Angle Range KG-380, Three Angle Gloss Meter

• 20˚ Incidence angle (GU) : 0.0~120 / 120~2000
• 60˚ Incidence angle (GU) : 0.0~120 / 120~1200
• 85˚ Incidence angle (GU) : 0.0~120 / 120~160
