KFG-100 Capacity 100kg (1kN), S Typ

Details of KFG-100 Tension-Compression Force Gauge with a capacity of 100kg (1kN), S Type

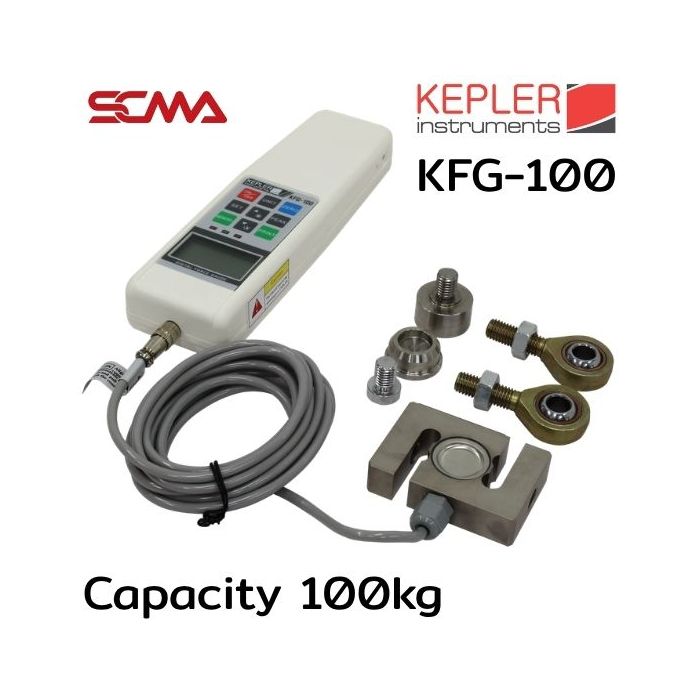

The KFG-100 tension-compression force gauge, with a capacity of 100kg (1kN) and S type, features an external sensor. It allows setting the peak hold time from 0~10 seconds and configuring high alarm and low alarm settings. There are red-green status indicator lights and a buzzer sound when test results exceed limits.

• Selectable testing range from 100kg (1kN) up to 200Ton (2000kN)
• Measuring units cover: N (Newton), kgf (kilogram-force), and lbf (pound-force)
• Can store up to 10 test results
• Automatic average calculation function
• LCD display with reversible screen orientation
• User-friendly, high accuracy, robust and durable
• Automatically turns off when not in use
• RS232 port for connecting to software for force curve analysis, test results, and printing test reports

Applications of KFG-100 Tension-Compression Force Gauge with a capacity of 100kg (1kN), S Type

• Used in quality control inspection, research and development, material testing laboratories, etc.
• To test the compressive force that causes materials to break, such as cement, bricks, stones, etc.
• To test the compressive force of machinery used in industries like metal presses, various industrial pressing machines
• To test tensile forces for pulling out different materials
• To test the tensile strength of various materials such as steel bars, belts, chains, springs, wires, ropes, and cables, etc.
• Used in machinery maintenance work
