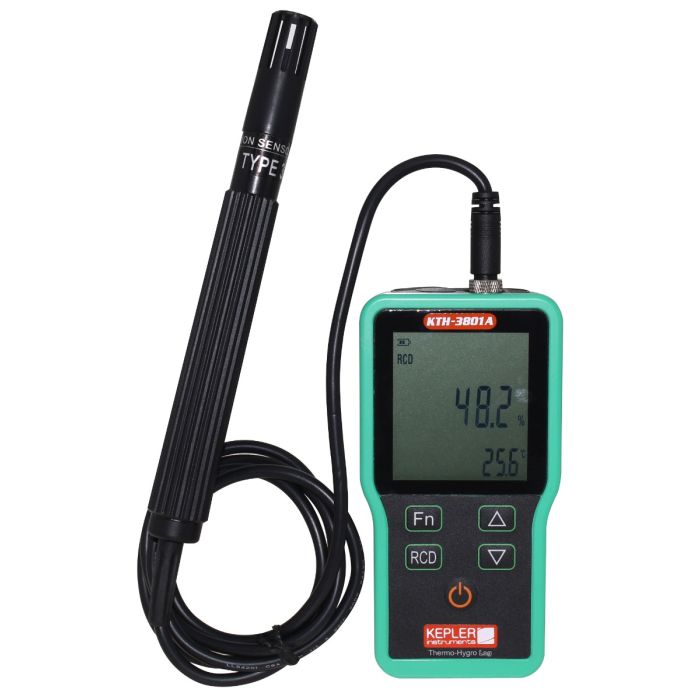

KEPLER Temperature Meter Model KTH-3801A

Details of KEPLER Temperature Meter Model KTH-3801A

The KEPLER Temperature Meter model KTH-3801A has a temperature measurement range of -40⁰C...+85⁰C, relative humidity from 0...100% RH and dew point from -70⁰C...+85⁰C. It offers a resolution of 0.1% RH, 0.1⁰C, 0.1⁰F, ensuring high accuracy and quick response.

• Accuracy (at 25⁰C) Temperature : ±0.3⁰C / ±0.5⁰F
• Relative Humidity : ±2% RH (0...95% RH)
• IP66 standard, water and dust resistant
• Complies with CE and RoHS standards
• Data logging capacity of 32,000 data points
• USB High Speed Downloading
• Max/Min/Avg/Hold functions
• Large LCD display with LED Back-light
• High accuracy and quick response
• Dew point calculation
• Internal calibration function
• USB and RS-232 output
• Sampling Rate : 2 seconds to 2 hours (user defined)
• Table view mode
• Trend Line display
• Graphic zoom in and out
• Real-time data logging
• Download recorded data
• Operating environment temperature -20...+60 °C ; humidity 0...100%RH
• Waterproof socket
• Probe model PTH-03A (ø18 x 192.0 mm) (included)
• Probe model PTH-03B (ø6 x 260.6 mm) (available for purchase separately)
• USB, RS-232 interface cable, Software CD (included)
• AC Adapter, 9v battery x1, manual, box (included)
• Dimensions : 75x150x28 mm
• Approximate weight : 320 grams

Applications of KEPLER Temperature Meter Model KTH-3801A

1. Factory maintenance 2. Greenhouses 3. Air conditioning systems 4. Textile factories 5. Manufacturing processes

6. Clean rooms 7. Laboratories 8. Daycare centers 9. Cold rooms 10. Dry rooms
