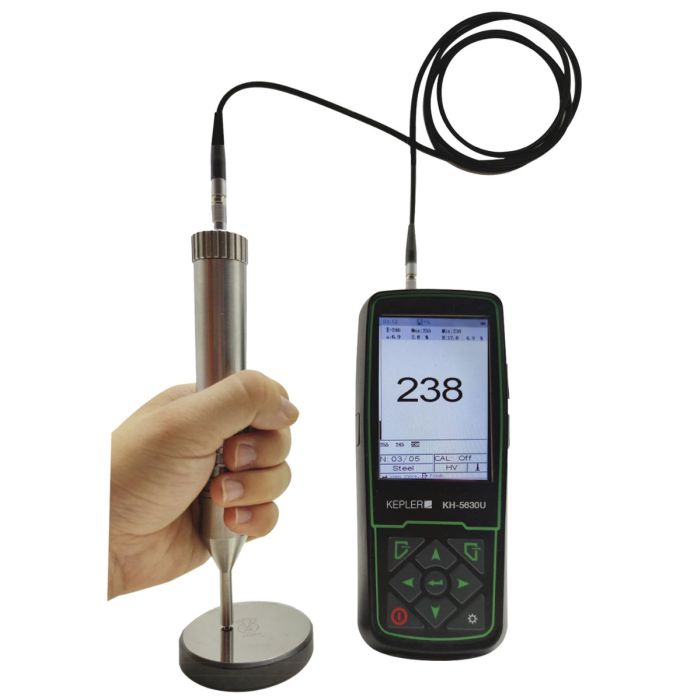

KH-5630U KEPLER Ultrasonic Hardness Testers

Details of KEPLER Ultrasonic Hardness Testers Model KH-5630U

KEPLER Ultrasonic Hardness Tester Model KH-5630U is an ultrasonic hardness testing device that performs non-destructive testing (Non Destructive Testing) with a measurement range of 80~1000HV and high accuracy ±4% (<500HV). It provides rapid response within 2 seconds, uses a Diamond indenter probe, and supports testing in all directions at 360°C. The LCD screen clearly displays results along with simultaneous measurements, and allows for unit selection including HV, HB, and HRC. This device's memory can store up to 100 groups of data, and additional storage is available via an SD Card.

Results Displayed on the Screen

• Loading force
• Testing-times
• Testing result
• Average
• Maximum
• Minimum
• Deviation
• Conversion scale

Technical Data of KEPLER Ultrasonic Hardness Testers Model KH-5630U

• Loading force 1Kgf
• Measuring range 80~1000HV
• Measuring accuracy ±4% (<500HV), ±5% (500~800HV), ±6% (>800HV)
• Repeatability 8% (<250HV) / 6% (≥250HV)
• Indenter vickers 136°C diamond indenter
• Measuring direction Support 360°
• Hardness scale HV, HB, HRC
• Data display Loading force, testing-times, testing result, average, maximum, minimum, deviation and conversion scale
• Hardness indication LCD display
• Operating environment Temperature : 10~50°C, humidity : 30~80%R.H
• Dimensions / Weight 170 x 75 x 36mm / 500g
