KH-5620U Motorized KEPLER Ultrasonic Hardness Testers

Details of KEPLER Ultrasonic Hardness Testers Model KH-5620U Motorized

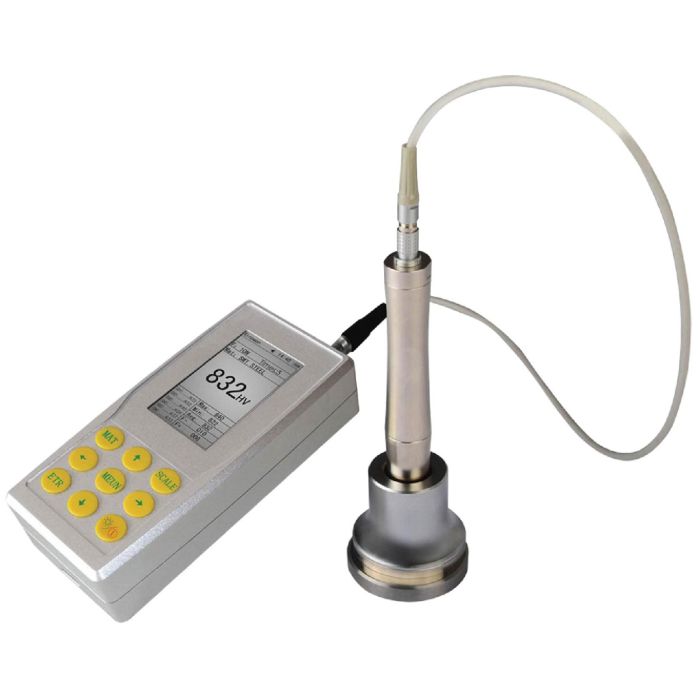

KEPLER Ultrasonic Hardness Testers Model KH-5620U Motorized is an ultrasonic hardness tester suitable for measuring thin surfaces or layered surfaces with uniform structure that cannot be measured using the impact method (Leeb) by a test force of 2 Kgf, or additional forces of 1, 5, and 10 Kgf can be purchased. It supports multiple measurement units such as HV, HB, HRC, HRA, HRB, MPa, used in conjunction with Vickers Diamond Indenter. This device can record up to 1,000 test groups and 20 calibration data sets, displaying loading force, testing times, testing results, deviation, conversion scale, average, maximum, minimum.

Wide Measurement Range

• HB: 85-650
• HV: 80-1599
• HRC: 20-70
• HRB: 41-100
• HRA:61-85.6
• HS: 34.2-97.3
• Mpa: 255-2180 N/mm

Accuracy

• HV: +3%HV
• HRC:+1.5%HRC
• HB:+3%HB

KEPLER Ultrasonic Hardness Testers Model KH-5620U Motorized is suitable for measuring hardness in various applications such as roller dies, gears, molds, gear teeth: Pla, in fans, in saws, workpieces that have undergone hardening or coating, etc.

Technical Data KEPLER Ultrasonic Hardness Testers Model KH-5620U Motorized

• Loading Force 2Kgf (Optional : 1Kgf, 5Kgf, 10Kgf)
• Measuring Range HB : 85~650 / HV : 80~1599 / HRC : 20~70 / HRB : 41~100, HRA : 61~85.6 / HS : 34.2~97.3 / MPa : 255~2180 N/mm
• Measuring Accuracy ±3%HV / ±1.5HRC / ±3%HB
• Indenter 136 Vickers Diamond Indenter
• Measuring Direction Support 360°
• Data Storage To save 1000 groups of measuring data and 20 groups of calibration data
• Hardness Scale HV, HB, HRC, HRA, HRB, MPa
• Data display Loading force, Testing-times, Testing result, Average, Maximum, Minimum, Deviation and Conversion scale.
• Hardness Indication LCD display
• Operating Environment Temperature : -10~50°C, Humidity : 30~80%R.H
• Operating Voltage 4.8VDC
