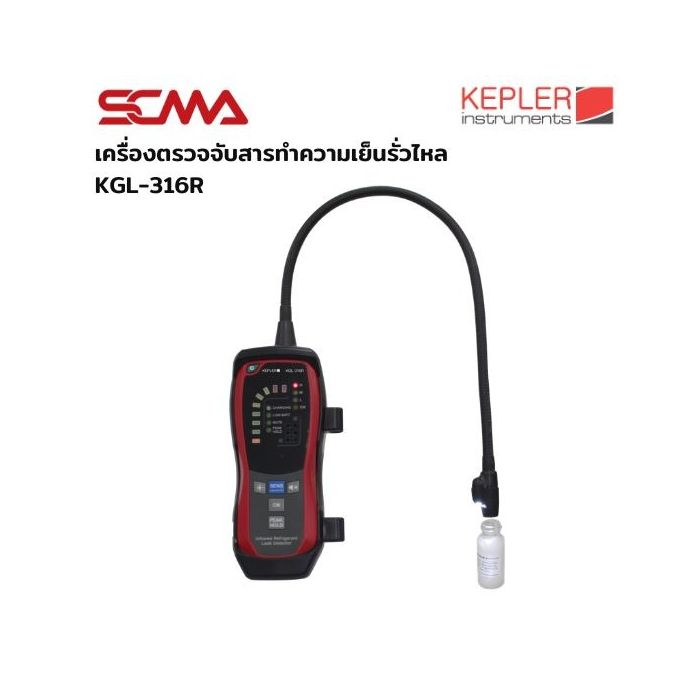

KGL-316R KEPLER Infrared Refrigrent Leak Detector

Details of KEPLER Infrared Refrigerant Leak Detector Model KGL-316R

The KEPLER Infrared Refrigerant Leak Detector model KGL-316R is a leak detection device capable of detecting various refrigerants such as R-22, R-134a, R-404a, R-407c, R-410a, R-507 (AZ-50), and all CFCs, HCFCs, and HFCs. It uses a highly sensitive infrared sensor along with multi-color LED indicators to easily identify leak levels. The device also features a peak hold function that allows for adjustable sensitivity settings across three levels using a durable flexible probe.

• Automatic detection sensitivity adjustment
• Audible alarm when leak is detected
• Environmental instability warning symbol
• LED light at the probe tip
• Audible alarm on/off switch
• Adapter power supply connection capability
• Contamination mode for detecting the smallest leaks

Technical Specifications of KEPLER Infrared Refrigerant Leak Detector Model KGL-316R

• Refrigerants R-22, R-134a, R-404a, R-410a, R-507 (AZ-50) and all CFCs, HCFCs and HFCs
• Sensitivity Levels High : 4g / year (0.15 oz./year ) Medium : 7g / year (0.25 oz./year ) Low : 14g / year (0.5 oz./year) (Compatible with SAE J2791)
• Response Time Less than 1 second
• Warm Up time 30 seconds
• Battery 3.7VDC, 1960mAh rechargeable lithium battery. Approx. 5 hours continuous use when fully charged
• Charging Time 6 hours in all @400mA, 0~45°C (32~113°F)
• Storage Temperature -10~60°C (14~140°F), <70%RH
• Pump System Yes
• Flexible probe length 450mm (17.72")
• Dimensions / Weight 184 x 70 x 40mm / 435g
• Accessories Manual, AC adapter, Leak test bottle, Holster, Porex Filter (2pcs), Carrying case, Sleeve
