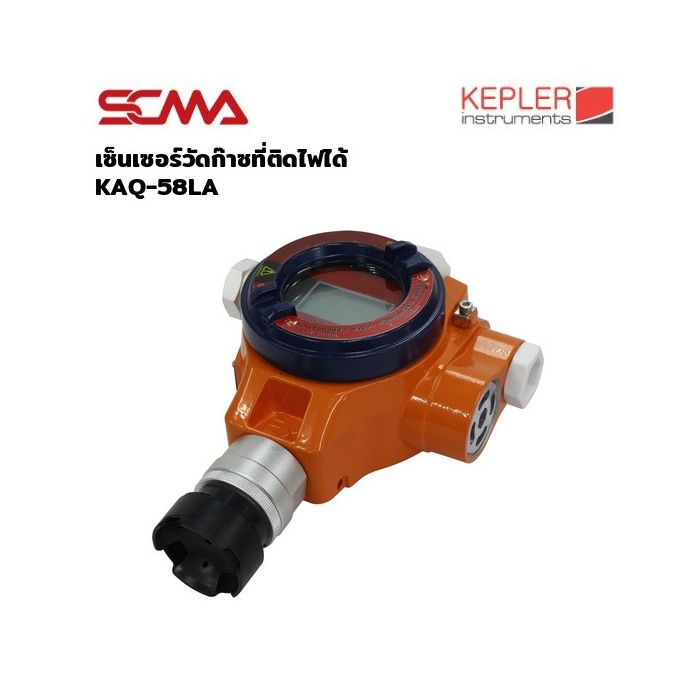

KAQ-58LA KEPLER Fixed Gas Detector

Details of KEPLER Combustible Gas Detector (Fixed Gas Detector) Model KAQ-58LA

KEPLER Combustible Gas Detector (Fixed Gas Detector) Model KAQ-58LA is a sensor designed to detect combustible gases. It comes with an explosion-proof standard, ensuring safety during use. Additionally, it has an IP65 dust and water protection rating, making installation possible in all weather conditions. The easy-to-read LCD display allows for clear visibility of the detection results. This model is designed for ease of disassembly and replacement. Furthermore, this sensor features built-in alarm sounds and a flashlight to immediately alert users. It also includes an IR Remote for configuration and calibration, as well as analog output 4~20mA interface RS485.

Technical Data KEPLER Combustible Gas Detector (Fixed Gas Detector) Model KAQ-58LA

• Measuring gas Combustible
• Measuring range 0~100%LEL
• Sensor type Catalytic
• Resolution 1%LEL
• Accuracy ±5%F.S.
• Sensor life 3 year
• Response time Toxic gas and O2 : T90≤60s / CO2 : T90≤10s / Combustible : T90≤30s
• Signal output 4~20mA
• Alarm output signal 2 programmable relays
• Cable / distance 1.5 mm², 3 wire, shielded, 1000m (maximum) 3 wire, shielded, 1000m (maximum)
• Conduit connection G3/4"
• Mounting type Wall mounted
• Working temperature Toxic gas : -20°C~+50°C / Combustible : -40°C~+70°C
• Working humidity ≤95%RH (no condensation)
• Operation voltage 24VDC ±25%
• Consumption <2W
• Housing material Chamber : Aluminum alloy / Sensor cover : Stainless steel
• Approval / IP Ex d IIC T6 / IP65
• Dimensions / weight 174 x 220 x 105mm / about 2kg
