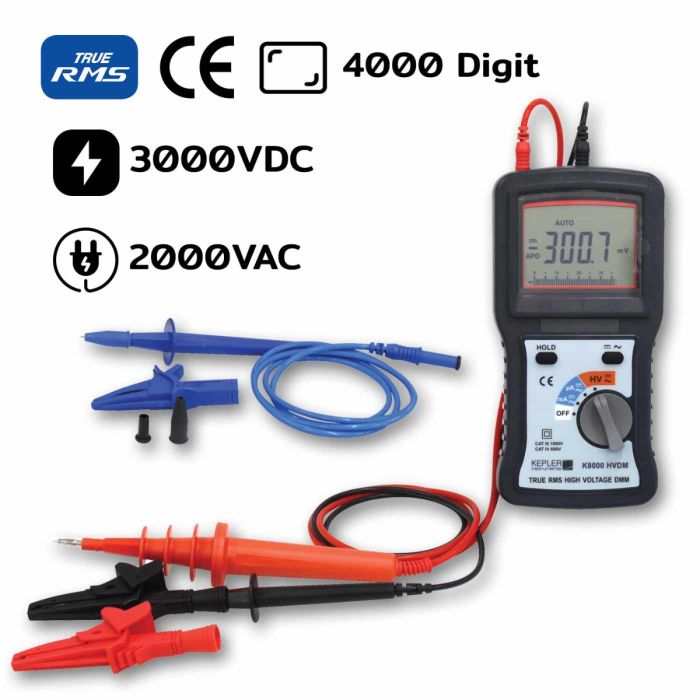

K8000 HVDM KEPLER Digital Multimeter

Details of KEPLER Multimeter (Digital Multimeters) Model K8000 HVDM

KEPLER Digital Multimeter Model K8000 HVDM is a High Voltage Digital Multi-meter that measures True RMS values with high accuracy. It features an LCD display capable of showing up to 4000 digits, along with a bar graph for displaying measurement values. The meter automatically switches range and has a compact, robust design that is easy to control, featuring a Data Hold button to hold the measured value. This product complies with IEC/EN 61010-1 CAT III 1000V, IEC/EN 61010-1 CAT IV 600V, EN 61326-1 standards and is suitable for solar cell work and PV system applications.

• DC Voltage Range : 3000VDC
• AC Voltage Range : 2000VAC
• AC/DC Current Range : 400µA ~ 400mA

Technical Data KEPLER Multimeter (Digital Multimeters) Model K3000 MPR

• AC Voltage (Input impedance 10MΩ) 400mV / 4V / 40V / 400V / 1000V for CE ±(1.0%rdg+5dgt), 2000 for general ±(1.5%rdg+3dgt)
• DC Voltage (Input impedance 10MΩ) 400mV / 4V / 40V / 400V / 1000V for CE ±(0.5%rdg+5dgt), 3000 for general ±(1.0%rdg+3dgt)
• AC mA / μA 400μA / 4000μA / 40mA / 400mA ±(1.5%rdg+3dgt)
• DC mA / μA 400μA / 4000μA / 40mA / 400mA ±(1.2%rdg+5dgt)
• Dimensions 221mm x 110mm x 57mm
• Weight (battery included) Approx. 507g
• Power source 1.5V (AA) Alkaline battery x 2
• Safety standard IEC/EN 61010-1 CAT III 1000V, IEC/EN 61010-1 CAT IV 600V, EN 61326-1
• Accessories Instruction manual. Test leads. Alligator clips, Hand strap, Batteries, Carry case
