K7015 IN KEPLER Digital High Voltage Insulation Testers

Details of KEPLER Digital High Voltage Insulation Testers Model K7015 IN

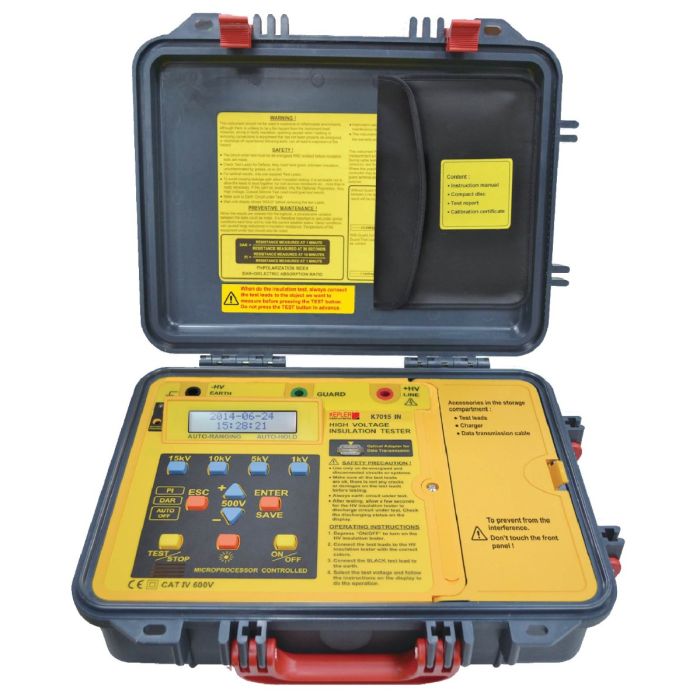

The KEPLER Digital High Voltage Insulation Tester model K7015 IN comes with dimensions of 430x324x127 mm and a weight of 6.56 kg, designed for insulation testing and quick data transfer to computers. It supports software installation for precise data collection, featuring a two-line LCD display that clearly shows measurement values, and easy-to-use control buttons that maximize performance.

• Insulation resistance test up to 6TΩ (6000GΩ)
• 5mA leakage current
• Microprocessor controlled
• 30 test voltage ranges : 500V, 1kV, 1.5kV, 2KV, 2.5kV, 3KV, 3.5kV, 4KV, 4.5kV, 5kV, 5.5kV, 6KV, 6.5kV, 7.5kV, 8KV, 8.5kV, 9kV, 9.5kV, 10kV, 10kV, 10.5kV. 11kV, 11.5kV, 12KV, 12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV
• Measures AC/DC voltage from 30~600V
• Automatically calculates PI and DAR values
• Automatic range switching
• 2-line LCD display with backlight
• Voltage supply bar graph display
• Audible alarm when the circuit being tested has a 230V AC/DC voltage
• Test duration setting from 1~30 minutes
• Memory can store up to 200 measurement values and allows data review
• Data transfer to computer via Optical to USB interface
• Overload protection system

Technical Data of KEPLER Digital High Voltage Insulation Testers Model K7015 IN

• Test voltage From 500VDC to 15kV Adjustable in 500V steps
• Preset buttons 1kV / 5kV / 10kV / 15kV
• Insulation resistance 200GΩ / 0.5kV, 200GΩ at 0.5kV ~ 6TΩ at 15kV
• Accuracy ±(5%rdg+5dgt) : 0~400GΩ (1kV) / 0~1TΩ (5kV, 10kV, 15kV), ±15% : 1~2TΩ (5kV) / 1~4TΩ (10kV) / 1~6TΩ (15kV)
• Resolution 1GΩ : 0.001GΩ / 10GΩ : 0.01GΩ / 100GΩ : 0.1GΩ / 1TΩ : 1GΩ / 6TΩ : 10GΩ
• Short circuit current up to 5mA
• Voltmeter ACV : 30~600V (50/60Hz) / DCV : 30~600V / Resolution 1V ±(2.0%rdg+3dgt)
• Current measurement 0.5nA~0.55mA (Depending on the insulation resistance)
• Power source / Adapter Rechargeable battery / Input : 100~240VAC, 0.4A, 50~60Hz / Output : 24VDC, 0.62A
• Dimensions / Weight 430(L) x 324(W) x 127(D)mm / Approx : 6.56kg
• Safety standard EN 61010-1 CAT IV 600V, EN 61010-2-030, EN 61326-1
• Accessories Instruction manual, Test leads (KAL-58, KAL-30AG, KAL-30HB), Data transmission cable CA-232,
• CD for PC interface, Alligator clip (KAL-23CA), Charger (CHA-7015), Test report
