K6213A IN KEPLER Digital High Voltage Insulation Testers

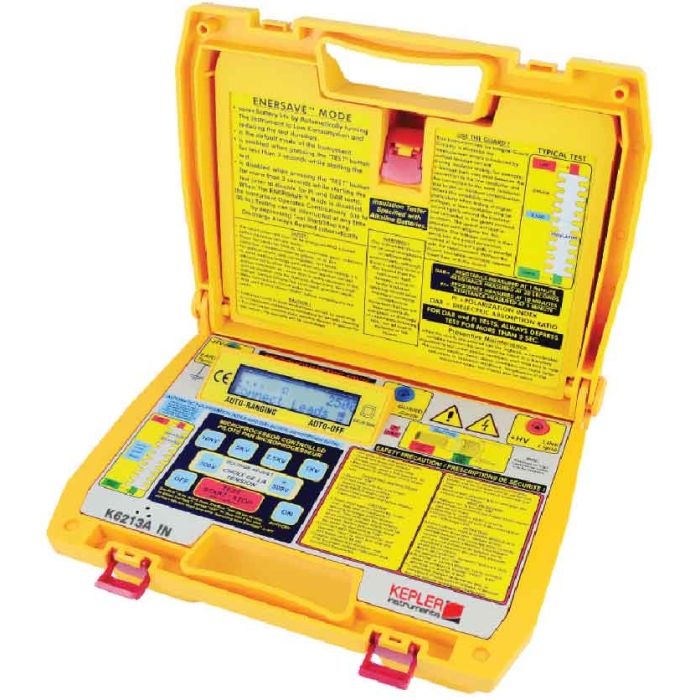

Details of KEPLER Digital High Voltage Insulation Tester Model K6213A IN

The KEPLER Digital High Voltage Insulation Tester, model K6213A IN, offers the ability to select up to 20 voltage test ranges and automatic range switching. The unit is equipped with an overload protection circuit for extended durability and uses low battery power consumption. The dimensions of this tester are 330x260x160 mm and it weighs 3600 grams.

• 20 voltage test ranges : 500V, 1kV, 1.5kV, 2KV, 2.5kV, 3kV, 3.5kV, 4KV, 4.5kV, 5KV, 5.5kV, 6kV, 6.5KV, 7kV, 7.5kV, 8KV, 8.5kV, 9kV, 9.5KV, 10KV
• Ener-Save™ mode to extend battery life
• Alarm when the circuit being tested has a voltage of 2500V AC/DC
• Automatic range switching
• Overload protection circuit
• Set test duration
• Low battery power consumption
• Automatic calculation of PI and DAR values
• Select up to 20 voltage test ranges
• Automatic range switching
• Overload protection circuit
• Set test duration
• Low battery power consumption

Technical Specifications of KEPLER Digital High Voltage Insulation Tester Model K6213A IN

• Test voltage From 500VDC to 10kVDC Adjustable in 500V steps
• Preset buttons 1kV / 2.5kV / 5kV / 10kV
• Measuring ranges 800kΩ~500GΩ (auto-ranging)
• Accuracy ±5% ±2 digits
• Output power limit 1W
• Voltage regulation Selected voltage +20%-5% of nominal value unless current limited. Meaning that if output current is too high, the voltage will be lowered automatically.
• Dimensions 330(L) x 260(W) x 160(D)mm
• Weight (battery included) Approx. 3600g
• Power source 1.5V "C" x 8 Alkaline batteries
• Safety standard EN 61010-1 CAT III 300V, EN 61326-1
