K1165 IN KEPLER Digital Insulation Testers

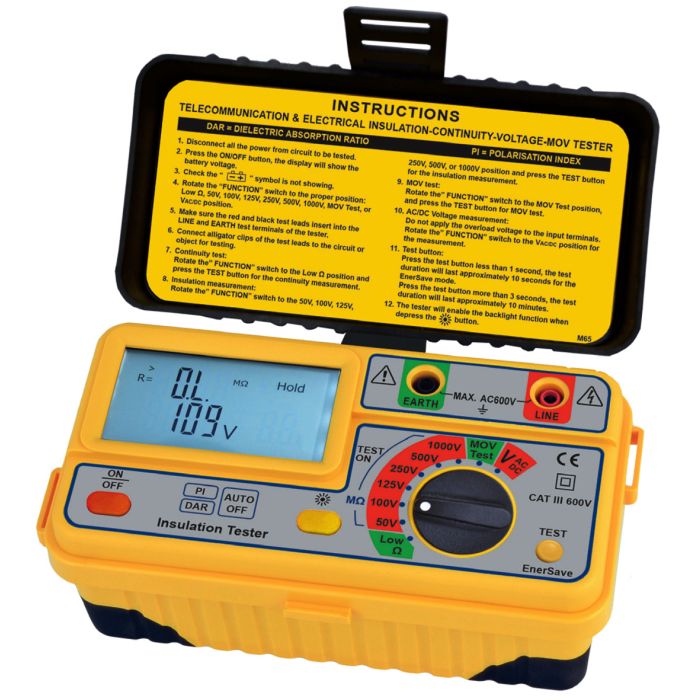

Details of KEPLER Digital Insulation Tester Model K1165 IN

The KEPLER Digital Insulation Tester, model K1165 IN, is a portable digital insulation tester that can be easily carried and used due to its compact size. It features the ability to measure insulation resistance, continuity, and six AC/DC voltage ranges. The control buttons are easy to operate, and the display makes reading measurements straightforward.

Features of KEPLER Digital Insulation Tester Model K1165 IN

• Measures insulation resistance (MΩ), continuity (Ω), AC/DC voltage
• Six test voltage ranges: 50V, 100V, 125V, 250V, 500V, 1000V
• Large LCD screen with backlight
• Designed with a rotary switch for easy operation
• Automatically detects AC/DC voltage
• Audible alarm when system voltage is present
• Insulation diagnosis with DAR / PI functions
• Automatic discharge after testing
• Auto-ranging measurement
• Fuse protection
• EnerSave function
• MOV test function

Technical Data of KEPLER Digital Insulation Tester Model K1165 IN

• Test voltage (DCV) 50V 100V 125V 250V 500V 1000V
• Measuring ranges (Auto ranging) 50kΩ~400MΩ 100kΩ~800MΩ 125kΩ~1GΩ 250kΩ~2GΩ 500kΩ~4GΩ 1MΩ~8GΩ
• Resolution 1kΩ~1MΩ 1kΩ~1MΩ 1kΩ~1MΩ 1kΩ~10MΩ 1kΩ~10MΩ 10kΩ~10MΩ
• Output voltage open circuit ±10%
• Accuracy 50kΩ~4GΩ : ±3%rdg
• Output current Up to 1mA DC
• AC/DC Voltage Range 0~600V AC/DC, 50/60Hz, ±1.5%rdg
• Continuity Measuring ranges 0~200Ω, ±1.5%rdg
• Short circuit terminal current ≤100mA DC min
• Dimensions / Weight 175(L) x 85(W) x 75(D) mm / Approx. 665g (battery included)
