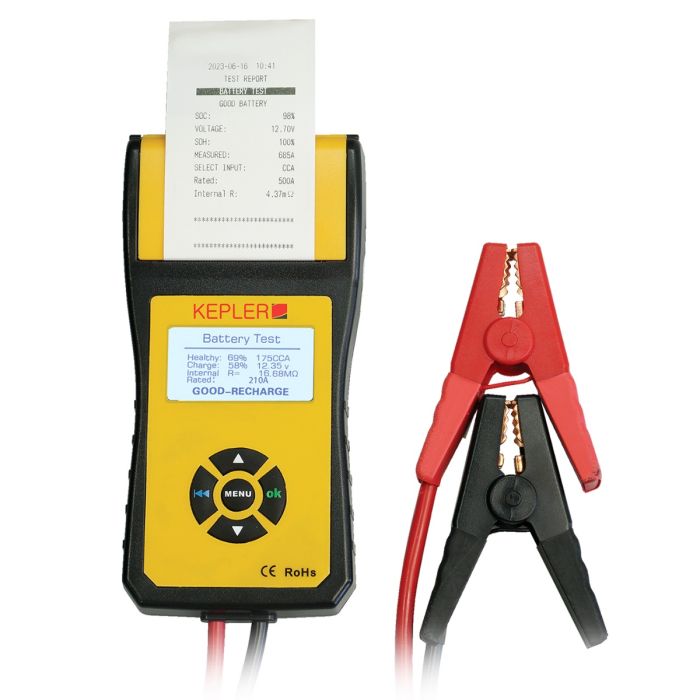

The KEPLER KBT-250 is a battery testing and analysis device for checking 12 V and 24 V system batteries. It supports Regular Flooded and AGM Battery types, capable of measuring voltage, assessing battery health status, determining actual CCA value, conductance value, and internal resistance. The unit also features Battery Test, Cranking Test, and Charging Test functions. It includes an integrated printer for printing test results and supports data export via USB cable.
Highlights
Suitable for testing 12 V and 24 V batteries
Supports Regular Flooded and AGM Battery types
Complies with various battery testing standards such as CCA, JIS, IEC, EN, DIN, and others supported by the device
Measures battery voltage
Evaluates battery State of Health (SoH)
Determines Actual CCA Value
Checks Conductance Value
Tests Internal Resistance
Includes a built-in small printer for immediate printing of test results
Data export via USB cable is supported
Uses Double Conductor Kelvin Clamp for testing
Test Modes
Battery Test
Cranking Test
Charging Test
Measurable Data
Battery Voltage
State of Health (SoH)
Charging Condition
Actual CCA Value
Conductance Value
Internal Resistance
Battery Test Range
Battery Application: 12 V / 24 V
Cell Measure Range: 30 Ah – 220 Ah
Supported Testing Standards
CCA
BCI
CA
MCA
JIS
DIN
IEC
EN
SAE
GB
Operating Environment
Working Environment Temperature: -20°C to 50°C
Construction and Connectivity
Housing Material: ABS Plastic
Test Clip: Double Conductor Kelvin Clamp
Built-in Printer: Yes
Data Export with USB Cable: Yes
Applications
To check car batteries
To inspect electric vehicle and forklift batteries
To test solar system batteries such as Solar Farms and Solar Roofs
To evaluate battery performance
In quality control (QC) work to check battery quality
