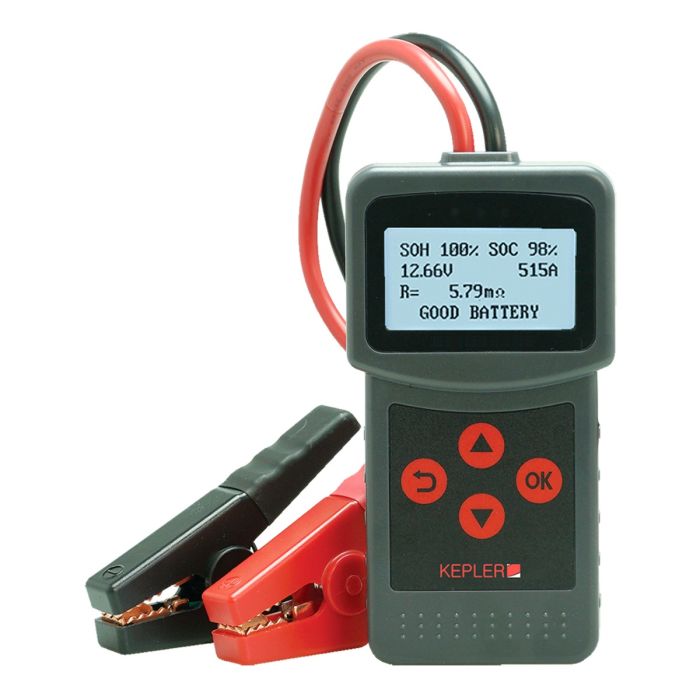

The KEPLER KBT-200 is a battery testing and analysis device designed for checking 12 V and 24 V system batteries. It supports Regular Flooded and AGM Battery types, capable of measuring voltage, assessing battery health status, determining true CCA value, conductance value, and internal resistance. The unit features Battery Test, Cranking Test, and Charging Test functions, with USB data export capability.
Highlights
Battery testing for 12 V and 24 V systems
Supports Regular Flooded and AGM Batteries
Complies with battery test standards such as CCA, JIS, IEC, EN, DIN, and other supported standards
Voltage measurement of batteries
Battery State of Health assessment
Determination of Actual CCA Value
Conductance Value check
Internal Resistance check
Data export through USB cable
Uses Double Conductor Kelvin Clamp for testing
Test Modes
Battery Test
Cranking Test
Charging Test
Measurable Data
Battery Voltage
State of Health
Charging Condition
Actual CCA Value
Conductance Value
Internal Resistance
Battery Test Range
Battery Application: 12 V / 24 V
Cell Measure Range: 3 Ah – 220 Ah
Supported Testing Standards
CCA
BCI
CA
MCA
JIS
DIN
IEC
EN
SAE
GB
Operating Environment
Working Environment Temperature: -20°C to 50°C
Construction and Connectivity
Housing Material: ABS Plastic
Test Clip: Double Conductor Kelvin Clamp
Data Export with USB Cable: Yes
Applications
Cars battery inspection
Battery check for electric vehicles and forklifts
Solar system battery inspection, such as Solar Farm and Solar Roof
