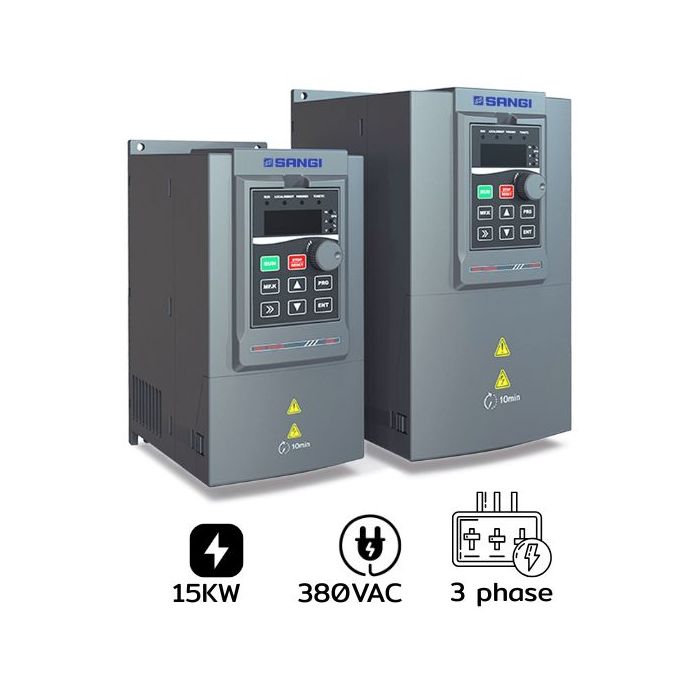

Inverter Model : SG-VB-4T015GB/18R5PB/15kW/20HP/3 phase 380VAC

Details of Inverter (Inverter) Model : SG-VB-4T015GB/18R5PB/15kW/20HP/3 phase 380VAC

Inverter (Inverter) Model : SG-VB-4T015GB/18R5PB/15kW/20HP/3 phase 380VAC Three Phase Inverter 380/440VAC is a device that converts direct current (DC) to alternating current (AC) in three phases, with an output voltage of approximately 380 volts, which matches the standard industrial power supply system in Thailand. SCMA distributes Brands SANGI The working principle of the three-phase inverter

Features Inverter (Inverter) Model : SG-VB-4T015GB/18R5PB/15kW/20HP/3 phase 380VAC

DC Input Power:

• It may come from a battery, solar panels, or through conversion from household AC power to DC using a Rectifier circuit.

Switching Circuit (IGBT, MOSFET):

• Uses switching devices to rapidly switch power supply, generating alternating current signals.
• Controls the switching sequence in three phases (R-S-T or U-V-W).

Waveform Control (PWM - Pulse Width Modulation):

• Uses PWM technique to create an output signal with a waveform closest to sine wave.
• Can control the speed of AC motors from the frequency of PWM.

Output Result: Three-phase alternating current that can be used with various loads such as three-phase motors. Advantages of using a three-phase inverter, precise motor speed control, and more energy-efficient than conventional on-off systems.

• Reduces starting surge currents for motors.
• Suitable for loads requiring high torque. Applications of three-phase inverters, such as water pumps, fans, conveyor belts, and industrial machinery.
• HVAC systems (heating-cooling in buildings).
• Energy savings from using Inverter Three Phase.
• Extends motor lifespan.
• More precise system control.
• Reduces wear and tear from traditional motor starts.
