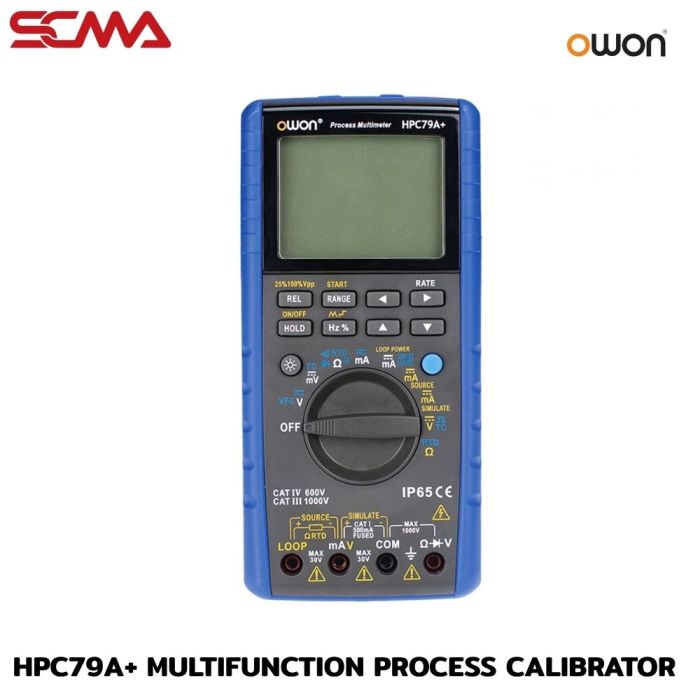

HPC79A+ from OWON is a multifunction process calibrator for measurement, creation, and simulation of signals in industrial instrumentation and control systems. It supports both Measure and Output modes, covering DC Voltage, DC Current, Resistance, Frequency, Thermocouple, and RTD, with functions for process calibration.
The device features a high-resolution display up to 55,000 Counts with a 5-digit display screen. It includes an integrated Loop power supply of 24V and can provide loop power while measuring the loop current. Additionally, it is equipped with a built-in 250Ω resistor for use with HART Communication Foundation devices without requiring additional loading.
Key Features
Multifunction process calibrator for system process and instrumentation calibration
A high-resolution display of 55,000 Counts with a 5-digit display screen
Supports both Measure and Output modes
Covers DC Voltage, DC Current, Resistance, Frequency, Thermocouple, and RTD
Supports signal simulation for process instrumentation work
Dual Display current measurement showing mA and % values
Manual Step 25% / 100%
Auto Step and Auto Ramp support
Included Loop power supply of 24V
Able to provide loop power while measuring the loop current simultaneously
Built-in 250Ω resistor for use with HART Communication Foundation devices
J / E / K / T / N / R / S / B, Resolution 0.1°C / 1°C
±(0.1%+1°C)
RTD / Thermal Resistor
Cu50 / Pt100 / Pt1000, Resolution 0.1°C
±(0.1%+1°C)
Output Mode
Item
Range of Output
Accuracy
DC Voltage
100.00mV / 1000.0mV / 10.000V
±(0.05%+3)
DC Current
30.000mA
±(0.05%+4)
Resistance
400.0Ω / 4.000kΩ
±(0.05%+2)
Frequency
100.0Hz / 1.000kHz / 5.00kHz / 10.0kHz
±(0.05%+2)
Thermocouple
K / E / J / T / B / N / S / R, Resolution 0.1°C / 1°C
±(0.05%+1°C)
RTD / Thermal Resistor
Cu50 / Pt100 / Pt1000, Resolution 0.1°C
±(0.05%+0.6°C)
Process Functions
24V Loop Power Supply with current measurement function
Inbuilt 250Ω resistor for HART devices
Dual Display to show mA and % values
Manual Step 25% / 100%
Auto Step
Auto Ramp
Diode Test and Continuity Beeper
Reference Junction Compensation for Thermocouple
Select temperature units °C / °F
Suitable for True RMS Measurement
Size and Power Supply
Dimensions: 160 x 100 x 38mm
Weight: Approximately 350g
Battery Type: 1.5V AA x 4
Suitable for AC Adapter as an accessory
Standards and Protection
Dust and Water Protection Standard IP65
CAT III 1000V
CAT IV 600V
Electromagnetic Compatibility: IEC 61326-1, Group 2, Class B
Usage Examples
Calibrate Transmitter and Process Instrumentation equipment
Check and simulate the 4-20mA signal in control systems
Monitor Loop Current while providing Loop Power of 24V
Calibrate Thermocouple and RTD Temperature Transmitters
Create Voltage, Current, Resistance, and Frequency signals for testing equipment
Work with HART devices using the built-in 250Ω resistor
Considerations
The HPC79A+ supports multiple types of measurement and signal generation, but the Measurement Range and Output Range are different. Therefore, it is important to select the operating range according to the mode being used and not to use the measurement range as a substitute for the output signal range.
