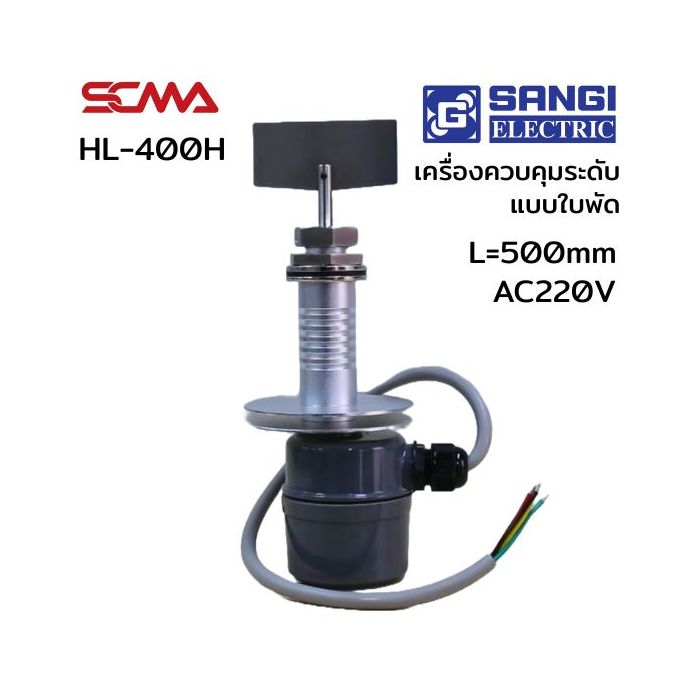

HL-400H L=500mm AC220V Level switch Rotary paddle SANGI

Details HL-400H L=500mm AC220V Paddle Level Switch (Rotary paddle) SANGI

HL-400H L=500mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI is a highly efficient and easy-to-use level control device for solids in silos or tanks. It is suitable for controlling the levels of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, wheat, barley, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to ensure desired levels and prevent overfilling or underfilling in silos. Model HL-400H is suitable for high temperature applications up to 100 °C.

Features of HL-400H L=500mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI

• Power supply (specify at order):   110V AC or 220V AC
• Contact current rating:   V AC, 5A resistive load
• Static torque (adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm
• Material of construction:   Aluminum die cast housing, stainless steel paddle
• Features
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with newly developed slip clutch that prevents motor damage even when the paddle is jammed and encounters resistance greater than specified.
• Compact size, space-saving design
