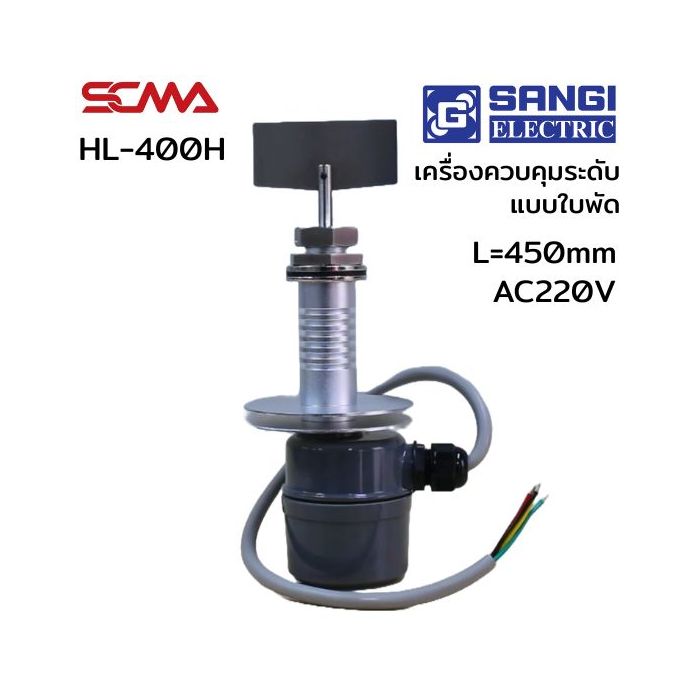

HL-400H L=450mm AC220V Level switch Rotary paddle SANGI

Details HL-400H L=450mm AC220V Paddle Level Switch (Rotary paddle) SANGI

HL-400H L=450mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI is a highly efficient and easy-to-use level control device for objects in silos or tanks. It is suitable for controlling the levels of plastic pellets, pharmaceutical pellets, agricultural products such as rice, corn, wheat, barley, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overflow or depletion from the silo. Model HL-400H is suitable for high temperature applications up to 100 °C.

Features of HL-400H L=450mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI

• Power Supply (Specify at order):   110V AC or 220V AC
• Contact Current Rating:   V AC, 5A resistive load
• Static Torque (Adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm.
• Material of Construction:   Aluminum die cast housing, stainless steel paddle
• Features:
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with newly developed slip clutch mechanism to prevent motor damage even when the paddle is jammed and encounters resistance greater than specified.
• Compact size, space-saving design
