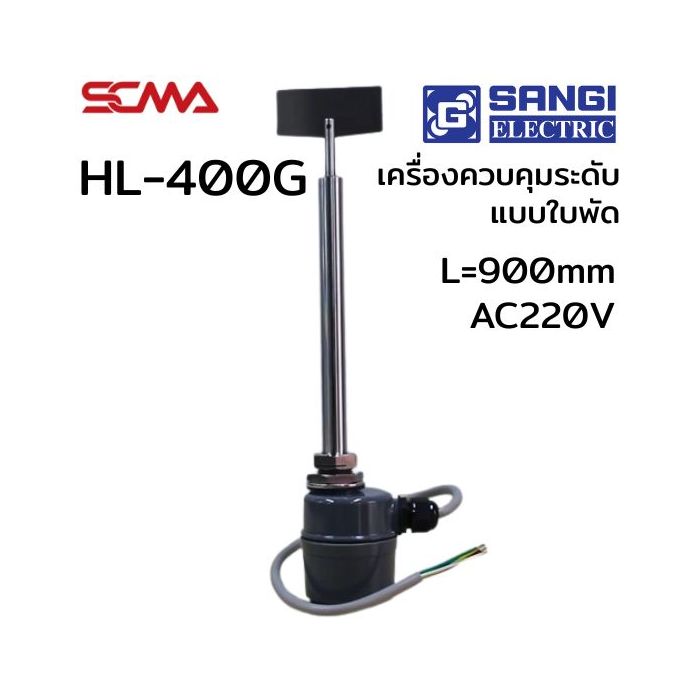

HL-400G L=900mm AC220V Level switch Rotary paddle SANGI

Details HL-400G L=900mm AC220V Paddle Level Switch (Rotary paddle) SANGI

HL-400G L=900mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI is a high-performance level control device for objects in silos or tanks, easy to use. Suitable for controlling the level of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, barley, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overfilling or emptying in silos. The HL-400G model has a shaft length of 200~1,000 mm (specify when ordering) and can be mounted on the top of silo tanks.

Features HL-400G L=900mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI

• Power supply (specify when ordering):   110V AC or 220V AC
• Contact current rating:   V AC, 5A resistive load
• Static torque (adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm
• Material construction:   Die cast aluminum housing, stainless steel paddle
• Features
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with newly developed slip clutch, preventing motor damage even when the paddle is obstructed and encounters resistance greater than specified.
• Compact size, space-saving
