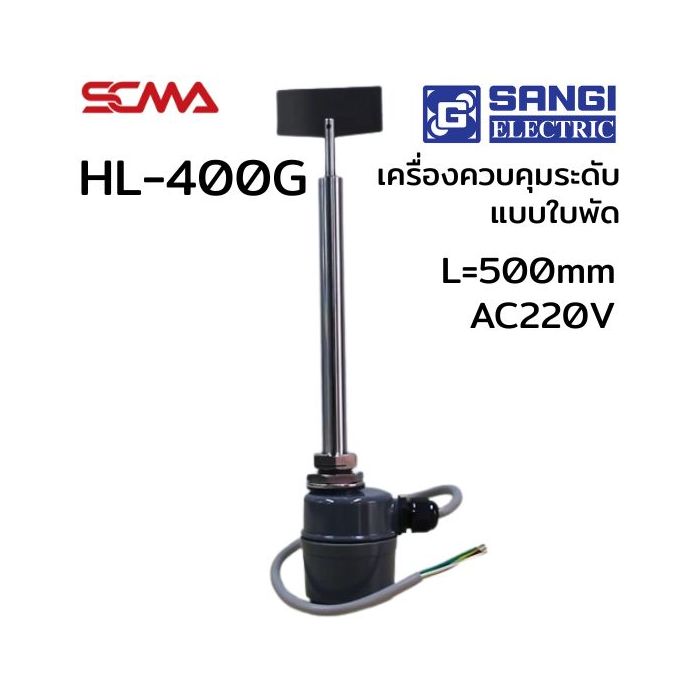

HL-400G L=500mm AC220V Level switch Rotary paddle SANGI

Details HL-400G L=500mm AC220V Paddle Level Controller (Level switch Rotary paddle) SANGI

HL-400G L=500mm AC220V Paddle Level Controller (Level switch Rotary paddle) SANGI is a high-performance level control device for objects in silos or tanks, easy to use. Suitable for controlling the levels of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, raw rice, barley, straw, wheat, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overflow or depletion in silo tanks. The HL-400G model has a paddle shaft length of 200~1,000 mm (specify when ordering) and can be mounted at the top of the silo tank.

Features

HL-400G L=500mm AC220V Paddle Level Switch SANGI

• Voltage (specify at order):   110V AC or 220V AC
• Contact current rating:   V AC, 5A resistive load
• Static torque (adjustable for the material to be controlled):   Adjustable from 0.3 to 0.6 kg-cm
• Material construction:   Die cast aluminum housing, stainless steel paddle
• Features
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with a newly developed slip clutch that prevents motor damage even when the paddle is jammed and encounters resistance greater than specified.
• Compact size, space-saving
