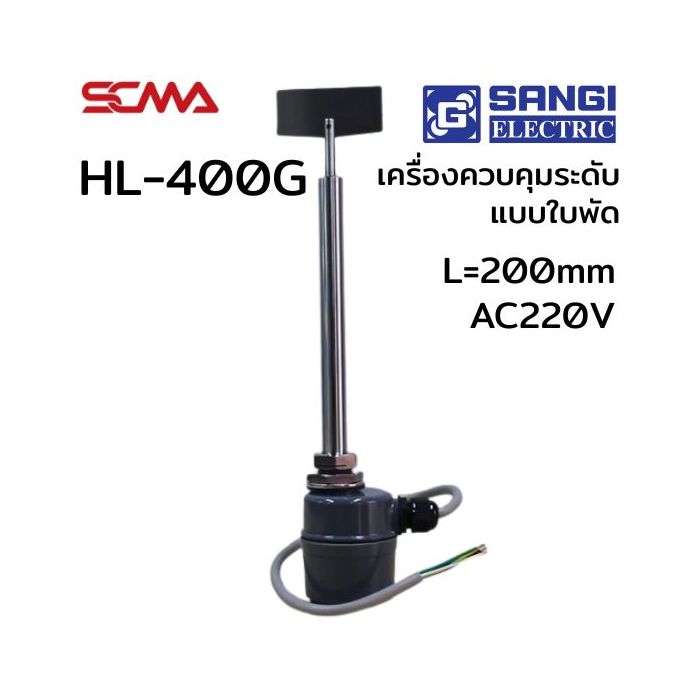

HL-400G L=200mm AC220V Level switch Rotary paddle SANGI

Details HL-400G L=900mm AC220V Paddle Level Switch (Rotary paddle) SANGI

HL-400G L=900mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI is a high-performance level control device for objects in silos or tanks, easy to use. Suitable for controlling the levels of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, barley, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overflow or depletion from the silo tank. The HL-400G model has a shaft length of 200~1,000 mm (specify when ordering) and can be mounted on top of the silo tank.

Features HL-400G L=900mm AC220V Paddle Level Switch (Level switch Rotary paddle) SANGI

• Power supply (specify when ordering):   110V AC or 220V AC
• Contact current rating:   V AC, 5A resistive load
• Static torque (adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm.
• Material construction:   Aluminum die-cast housing, stainless steel paddle
• Features
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with a newly developed slip clutch that prevents motor damage even when the paddle is obstructed and encounters resistance greater than specified.
• Compact size, space-saving
