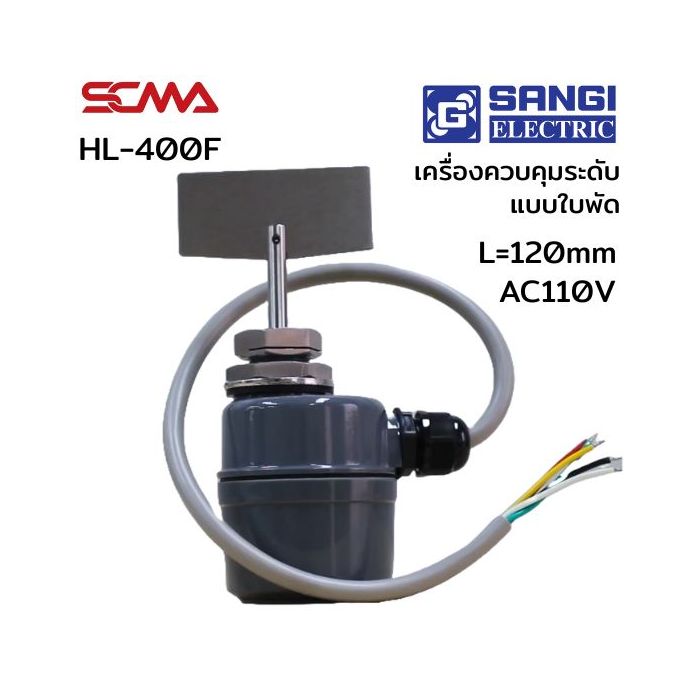

HL-400F L=120mm AC110V Level switch Rotary paddle SANGI

Details HL-400F L=120mm AC110V Paddle Level Switch (Rotary paddle) SANGI

HL-400F L=120mm AC110V Paddle Level Switch (Level switch Rotary paddle) SANGI is a highly efficient and easy-to-use level control device for solids in silos or tanks. It is suitable for controlling the levels of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, barley, oats, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overfilling or underfilling in silos. The HL-400H model is suitable for high temperature applications up to 100 °C.

Features of HL-400F L=120mm AC110V Paddle Level Switch (Rotary paddle) SANGI

• Power Supply (Specify at order):   110V AC or 220V AC
• Contact Current Rating:   V AC, 5A resistive load
• Static Torque (Adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm
• Material Construction:   Die cast aluminum housing, stainless steel paddle
• Features
• Torque adjustment is easy by opening the rear cover and changing the spring position. It can be adjusted from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with newly developed slip clutch to prevent motor damage even when the paddle is jammed and encounters resistance greater than specified.
• Compact size, space-saving design
