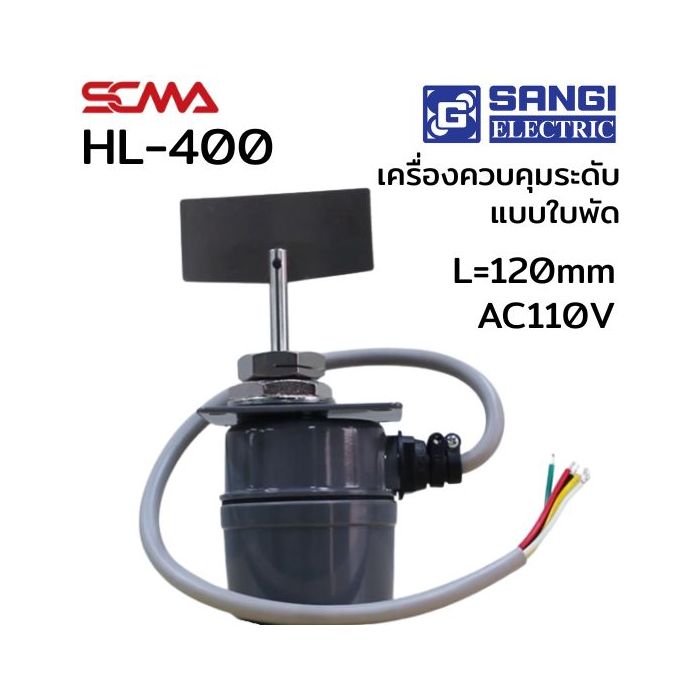

HL-400 L=120mm AC110V Level switch Rotary paddle SANGI

Details HL-400 L=120mm AC110V Level Switch Rotary Paddle SANGI

HL-400 L=120mm AC110V Level Switch Rotary Paddle SANGI is a high-performance level control device for objects in silos or tanks, easy to use. Suitable for controlling the levels of plastic pellets, pharmaceutical granules, agricultural products such as rice, corn, barley, oats, wheat, soybeans, green beans, peanuts, coffee beans, flour, sand, cement, and others to achieve desired levels and prevent overfilling or underfilling in silos. The HL-400 model is a standard version with separable paddle and shaft assembly for easier installation.

Features of HL-400 L=120mm AC110V Level Switch Rotary Paddle SANGI

• Power Supply (Specify at Order):   110V AC or 220V AC
• Contact Current Rating:   V AC, 5A resistive load
• Static Torque (Adjustable for the material being controlled):   Adjustable from 0.3 to 0.6 kg-cm
• Material Construction:   Die cast aluminum housing, stainless steel paddle
• Features:
• Torque adjustment is easy by opening the rear cover and changing the spring position. Adjustable from 0.3 ~ 0.6 kg-cm.
• Motor protection system (Slip 1.2~1.5 kg-cm) with newly developed slip clutch, preventing motor damage even when the paddle is obstructed and encounters resistance greater than specified.
• Compact size, space-saving design
