SFG-1003 GW instek Signal Generators DDS Function Generator

Details of GW INSTEK Signal Generators Model SFG-1003 DDS Function Generator

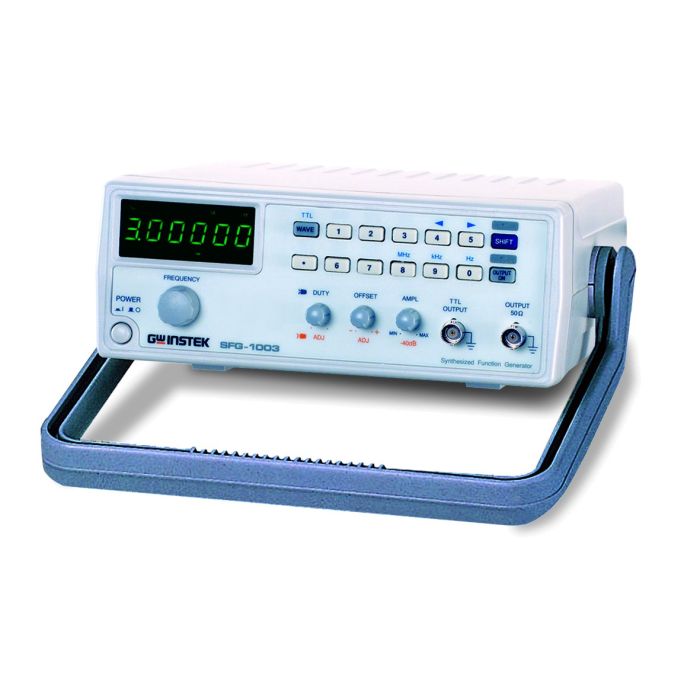

The GW INSTEK Signal Generators model SFG-1003 DDS Function Generator comes with a 6-digit LED display and features DDS technology and FPGA design, capable of generating frequency signals from 0.1Hz to 3 MHz, as well as outputting sine, square, triangle, and TTL waveform types. It offers high frequency accuracy and resolution.

• High frequency accuracy: ±20 ppm
• Frequency resolution: 100mHz

Technical Data of GW INSTEK Signal Generators Model SFG-1003 DDS Function Generator

• DDS technique and FPGA chip design
• Supports frequency range from 0.1Hz to 3MHz
• High frequency accuracy (±20ppm)
• High frequency stability (±20ppm)
• Maximum frequency resolution of 100mHz
• Low distortion sine wave (-55dBc, 0.1Hz to 200kHz)
• Ambient temperature range from 0°C to 40°C
• Power source AC is 100V/120V/220V/240V±10%, 50/60Hz
• Dimensions are 251mm(W) x 91mm(H) x 291mm(D)
• Approximately 2.1Kg weight
