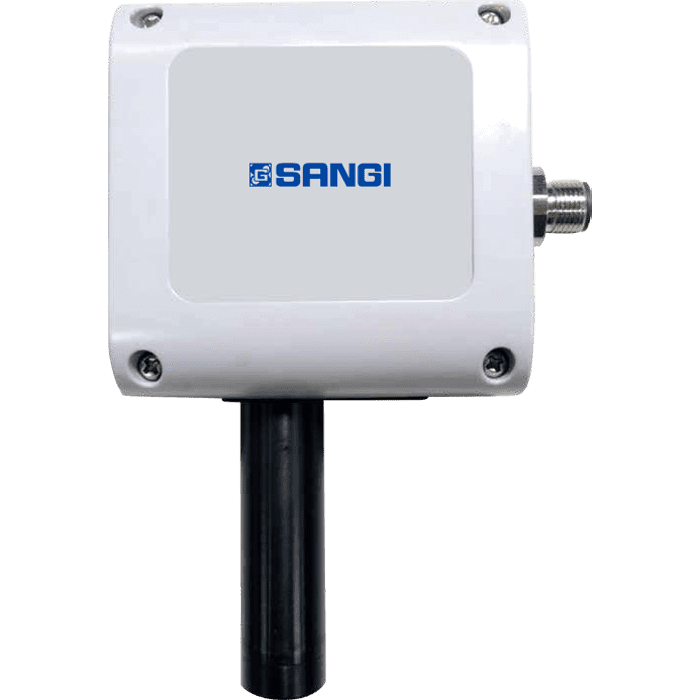

CO Sensor Transmitter Model : SGM33-1115-2N

Details of CO Sensor Transmitter (Carbon Monoxide Sensor) Model: SGM33-1115-2N

The CO Sensor Transmitter (Carbon Monoxide Sensor), Model: SGM33-1115-2N, is a gas carbon monoxide measuring sensor. The housing is made of heat-resistant polycarbonate and has dust and water protection standards. The housing meets IP65 standard while the probe measures at IP20 standard. The type of sensor is Electrochemistry CO Sensor with accuracy (at 25 ±2°C, 40 ±10%RH): ±3% F.S., ensuring effective measurement.

Features of CO Sensor Transmitter (Carbon Monoxide Sensor) Model: SGM33-1115-2N

• Measurement Range: 0 ~ 500 PPM
• Type of Sensor: Electrochemistry CO Sensor
• Accuracy (at 25 ±2°C, 40 ±10%RH): ±3% F.S.
• Housing made from heat-resistant polycarbonate
• Analog Output: 4-20 mA
• Communication: RS485(Modbus RTU)
• Operating Temperature and Humidity: 0°C ~ +50°C / 5 ~ 95%RH
• Maximum Measurable Ambient Temperature: 0°C ~ +50°C
• Power Supply Voltage Range: 8 - 35VDC or 12 - 30VAC
• Dust and Water Protection Standards: Housing IP65 / Probe IP20
• Cable Connection Type: Terminal Cable Gland
