E89005 \ ecomat 200 \ COUNTER/210/LCD \ DE

E89005 \ ecomat 200 \ Evaluation (Counter Speed Display) \COUNTER/210/LCD \ DE

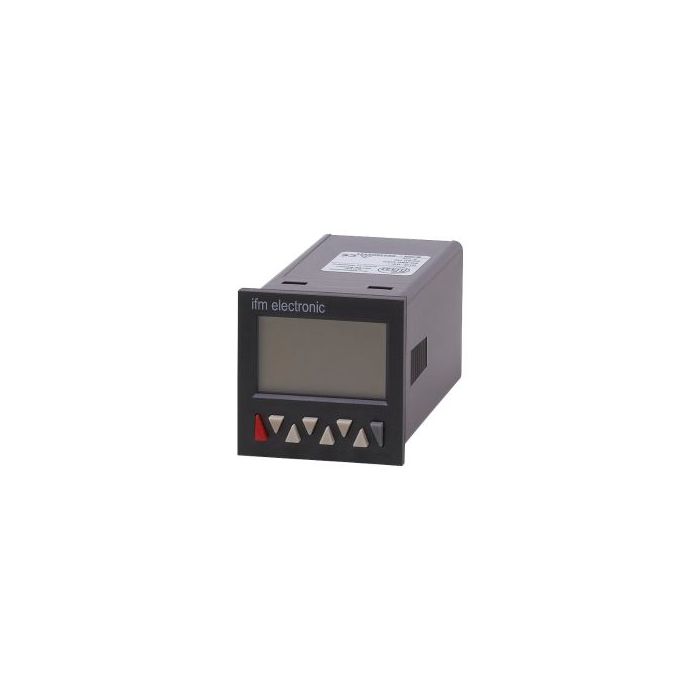

E89005 \ ecomat 200 \ Evaluation (Counter Speed Display) \COUNTER/210/LCD \ DE is a pulse evaluation system from ifm for preset counter 210. It is compact and easy to install, suitable for limited spaces as well as harsh weather conditions, ensuring efficient industrial production processes.

Features of E89005 \ ecomat 200 \ Evaluation (Counter Speed Display) \COUNTER/210/LCD \ DE

• Panel mounting housing
• Dimensions[mm] 48 x 48 x 107
• Application preset counter with 2 presets
• Nominal voltage AC[V] 90...260
• Nominal frequency AC[Hz] 50...60
• Auxiliary energy for sensors DC[V] 24; (±15 %, 80 mA)
• Number of inputs and outputs Number of digital inputs: 2; Number of relay outputs: 2
• Ambient temperature[°C] -20...65
• Storage temperature[°C] -25...75
• Max. relative air humidity[%] 93
• Protection IP65; (on the front)
• Protection rating terminals IP00
• Weight[g] 214.5
• Panel mounting housing
• Dimensions[mm] 48 x 48 x 107
• Materials PC black
