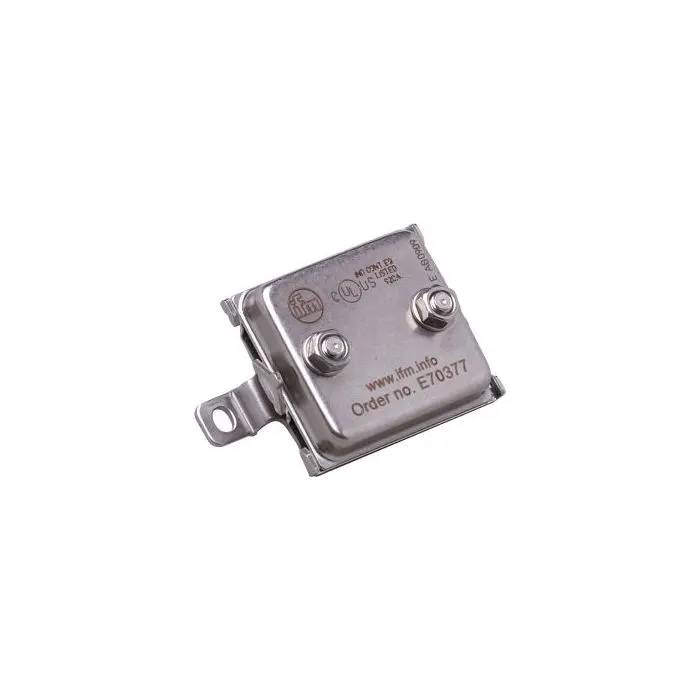

E70377 \ ecomat 300 \ AS-i \ FCE Splitter ye/ye ProcessL \ DE

Details of E70377 \ ecomat 300 \ AS-i (sensor accessory) \FCE Splitter ye/ye ProcessL \ DE

E70377 \ ecomat 300 \ AS-i (sensor accessory) \FCE Splitter ye/ye ProcessL \ DE This accessory works with AS-Interface from IFM to achieve efficient production processes, along with durability and suitability for all weather conditions.

Technical Data E70377 \ ecomat 300 \ AS-i (sensor accessory) \FCE Splitter ye/ye ProcessL \ DE

• Design AS-i / 24 V
• Application sanitary and wet areas in the food industry
• Protection class III
• Max. current load total[A] 8
• Electrical design AS-i
• Ambient temperature[°C] -30...80
• Max. relative air humidity[%] 80; (31 °C; linearly decreasing to 50 % (40 °C))
• Max. height above sea level[m] 2000
• Protection IP67; IP68; IP69K
• Degree of soiling 2
• EMC EN 61000-6-2
• Weight[g] 101.5
• Material metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM
• Tightening torque[Nm] 2.5; (lock nuts)
