DTE810 \ efector 190 \ DMC/RFID \ DTEUHFE_ABRWEIUS04 \ DE

DTE810 \ efector 190 \ DMC/RFID (RFID read/write head) \ DTEUHFE_ABRWEIUS04 \ DE

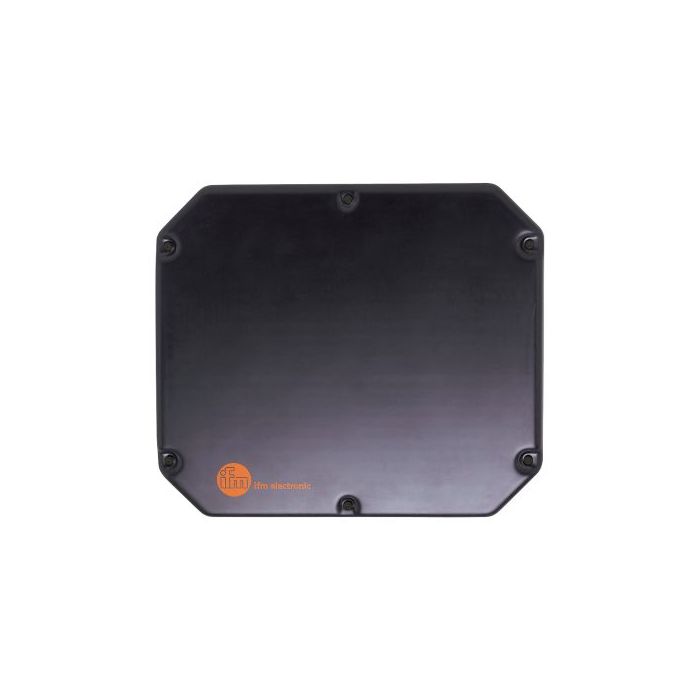

DTE810 \ efector 190 \ DMC/RFID (RFID read/write head) \ DTEUHFE_ABRWEIUS04 \ DE from ifm is an RFID read/write head with high-level control communication, featuring up to 4 input and output channels, along with robust aluminum material for long-lasting use.

Technical data DTE810 \ efector 190 \ DMC/RFID (RFID read/write head) \ DTEUHFE_ABRWEIUS04 \ DE

• Radio approval for EU/RED
• Note on radio approval The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”
• Operating voltage[V] 24 DC
• Current consumption[mA] 700
• Operating frequency[MHz] 865...868 (ETSI); (India: 865...867 MHz The operating frequency is activated by importing the corresponding configuration file.)
• Antenna connections 4; (TNC Reverse)
• RFID standard EPC Class1 GEN2/ISO 18000-6C
• Transmission power ERP[mW] 2000
• Impedance[Ω] 50
• Number of inputs and outputs Number of digital inputs: 4; Number of digital outputs: 4
• Max. current load per output[mA] 500
• Weight[g] 3056
• Housing rectangular
• Dimensions[mm] 233.5 x 270 x 68
• Materials housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic
