DN0220 \ ecomat 200 \ Power supply \ N200/SA-2 110-240VAC \ DE

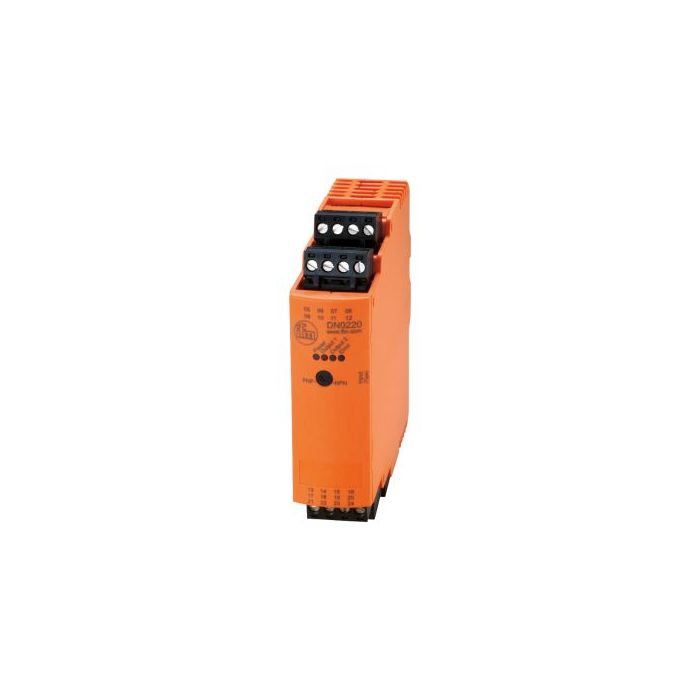

Details of DN0220 \ ecomat 200 \ Power supply (Power supply for sensors) \N200/SA-2 110-240VAC \ DE

DN0220 \ ecomat 200 \ Power supply (Power supply for sensors) \N200/SA-2 110-240VAC \ DE is a power supply unit designed to provide stable and uninterrupted power to sensors or Switching amplifiers. It comes with an IP20 dust and water protection standard, and supports operation within the temperature range of -20°C to 60°C.

Technical Data DN0220 \ ecomat 200 \ Power supply (Power supply for sensors) \N200/SA-2 110-240VAC \ DE

• Housing housing for DIN rail mounting
• Dimensions[mm] 112.6 x 25.4 x 109.1
• Application Power supply and signal evaluation
• Nominal voltage AC[V] 110...240
• Nominal voltage tolerance[%] > 20
• Nominal voltage tolerance 2[%] 20...10
• Nominal frequency AC[Hz] 50...60
• Insulation rating[V] 9
• Max. power consumption AC[W] 11
• Auxiliary energy for sensors DC[V] 24; (SELV, ± 10 %, 2 x ≤ 150 mA)
• Number of channels 2
• Weight[g] 240.5
• Housing housing for DIN rail mounting
• Type of mounting Mounting on DIN rail; (TH35 (EN 60715))
• Material plastics: PC-GF20
