DN0210 \ ecomat 200 \ Power supply \ N200/SA-1 110-240VAC \ DE

Details of DN0210 \ ecomat 200 \ Power supply (sensor power supply) \N200/SA-1 110-240VAC \ DE

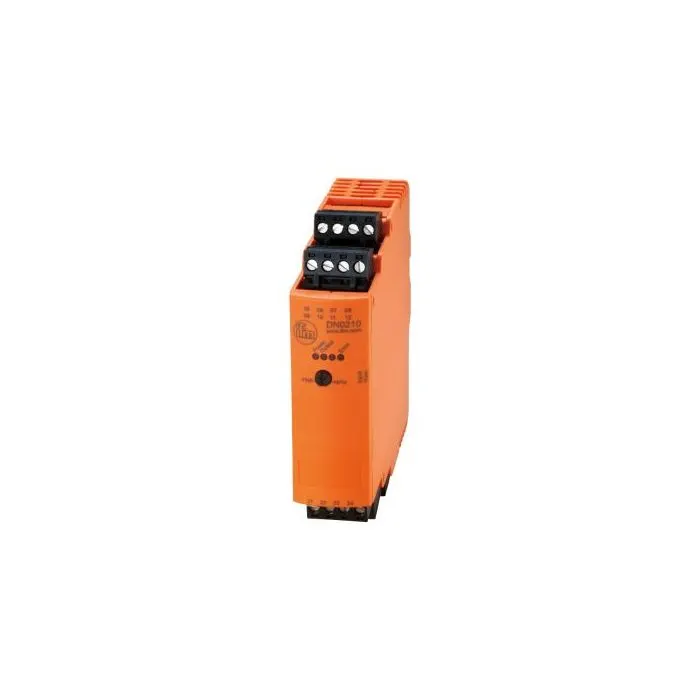

DN0210 \ ecomat 200 \ Power supply (sensor power supply) \N200/SA-1 110-240VAC \ DE is a device for powering sensors or Switching amplifiers to ensure smooth operation without interruptions. It comes with an IP20 dust and water protection standard, and supports usage within the temperature range of -20 to 60°C.

Technical Data DN0210 \ ecomat 200 \ Power supply (sensor power supply) \N200/SA-1 110-240VAC \ DE

• Housing for DIN rail mounting
• Dimensions[mm] 112.6 x 25.4 x 109.1
• Application Power supply and signal evaluation
• Nominal voltage AC[V] 110...240
• Nominal voltage tolerance[%] > 20
• Nominal voltage tolerance 2[%] 20...10
• Nominal frequency AC[Hz] 50...60
• Insulation rating[V] 9
• Max. power consumption AC[W] 11
• Auxiliary energy for sensors DC[V] 24; (SELV, ± 10 %, 2 x ≤ 150 mA)
• Number of channels 2
• Weight[g] 214
• Housing for DIN rail mounting
• Type of mounting mounting on DIN rail; (TH35 (EN 60715))
• Dimensions[mm] 112.6 x 25.4 x 109.1
• Materials plastics: PC-GF20
