DL0201 ecomat 200 Evaluation L200/LM-1/110-240VAC 24VDC DE

Details of DL0201 \ ecomat 200 \ Evaluation (Speed Sensor) \L200/LM-1/110-240VAC 24VDC \ DE

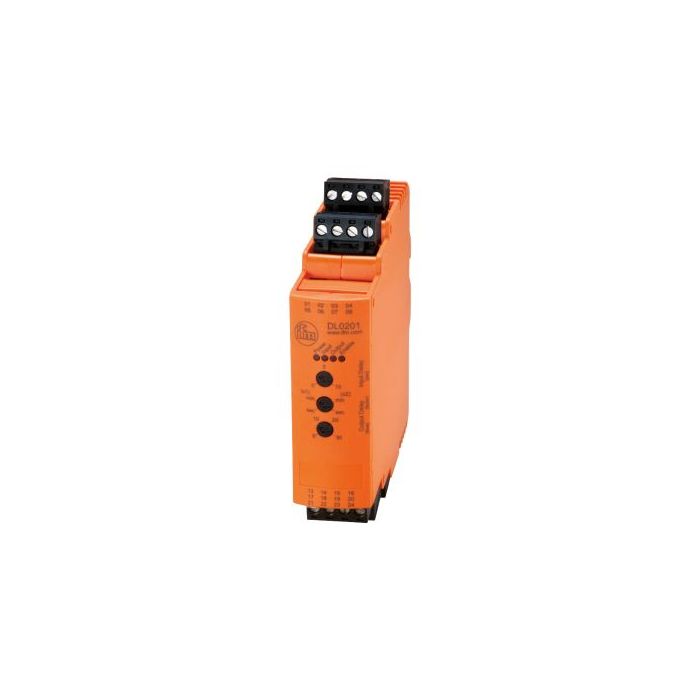

DL0201 \ ecomat 200 \ Evaluation (Speed Sensor) \L200/LM-1/110-240VAC 24VDC \ DE Speed measurement device from ifm for monitoring speed in production processes. Easy to install due to compact size, suitable for use within environmental temperatures ranging from -25°C to 60°C

Technical Data DL0201 \ ecomat 200 \ Evaluation (Speed Sensor) \L200/LM-1/110-240VAC 24VDC \ DE

• Housing for DIN rail mounting
• Dimensions[mm] 116 x 25.4 x 109.1
• Application Protection of a tank against overspill or dry run
• Operating voltage tolerance 2[%] > 20
• Nominal voltage AC[V] 110...240
• Nominal voltage DC[V] 27
• Nominal voltage tolerance[%] > 20
• Nominal voltage tolerance 2[%] 20...10
• Nominal frequency AC[Hz] 50...60
• Insulation rating[V] 9
• Max. power consumption AC[W] 6
• Max. power consumption DC[W] 4
• Auxiliary energy for sensors DC[V] 18.5...30; (SELV, ≤ 100 mA)
• Weight[g] 242.5
• Housing for DIN rail mounting
• Type of mounting mounting on DIN rail; (TH35 (EN 60715))
• Dimensions[mm] 116 x 25.4 x 109.1
