CR1080 \ ecomat 100 \ R360 (HMI Display) \R360/PDM NG/DialogDisplay \ DE

Details of CR1080 \ ecomat 100 \ R360 (HMI Display) \R360/PDM NG/DialogDisplay \ DE

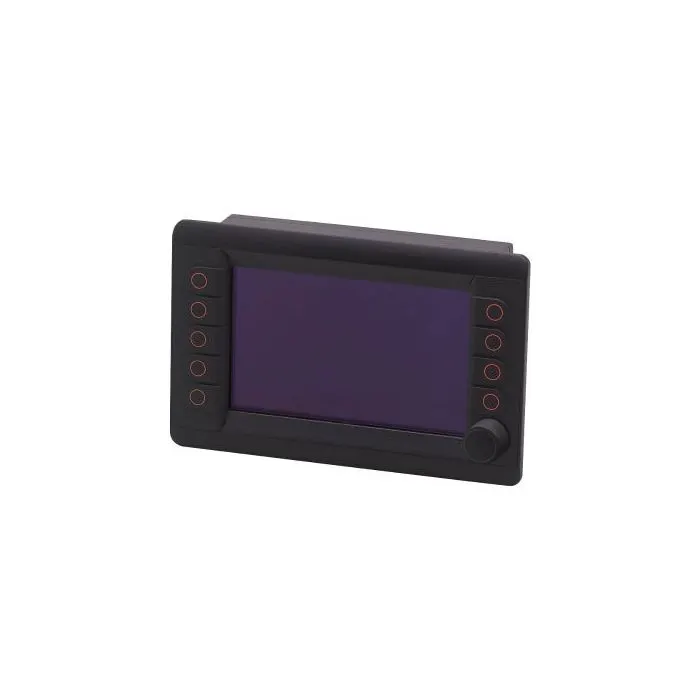

CR1080 \ ecomat 100 \ R360 (HMI Display) \R360/PDM NG/DialogDisplay \ DE is an HMI display for controlling and displaying system operations of Mobile Systems. The screen has a size of 7 inches with a resolution of 800 x 480, offering colorful display that allows clear visibility of various values on the screen. It can be applied in mobile machines at airports such as aircraft tugs, aerial work platforms, fire trucks or marine vessels.

Technical Data CR1080 \ ecomat 100 \ R360 (HMI Display) \R360/PDM NG/DialogDisplay \ DE

• Rectangular housing
• Operating voltage[V] 10...32 DC
• Power consumption[W] 7.2
• Number of digital inputs 1
• Number of analogue inputs 1
• Analogue input (current)[mA] 0...20
• Analogue input (voltage)[V] 0...32
• Number of digital outputs 1
• PLC function to IEC 61131-3 yes
• Number of CAN interfaces 4
• Number of Ethernet interfaces 1
• Number of USB interfaces 2
• Weight[g] 1747.4
• Type of mounting panel / surface
• Dimensions[mm] 145 x 225 x 80
• Operating elements
• 9 freely programmable backlit function keys
• 1 encoder with push button
• Display resolution 800 x 480
• Display type colour display
• Display size 7"
• Display background illumination LED
