ANT513 \ efector 190 \ RFID \ DTRHF MCRWIDUS03 \ DE

Details of ANT513 \ efector 190 \ RFID (RFID read/write head) \DTRHF MCRWIDUS03 \ DE

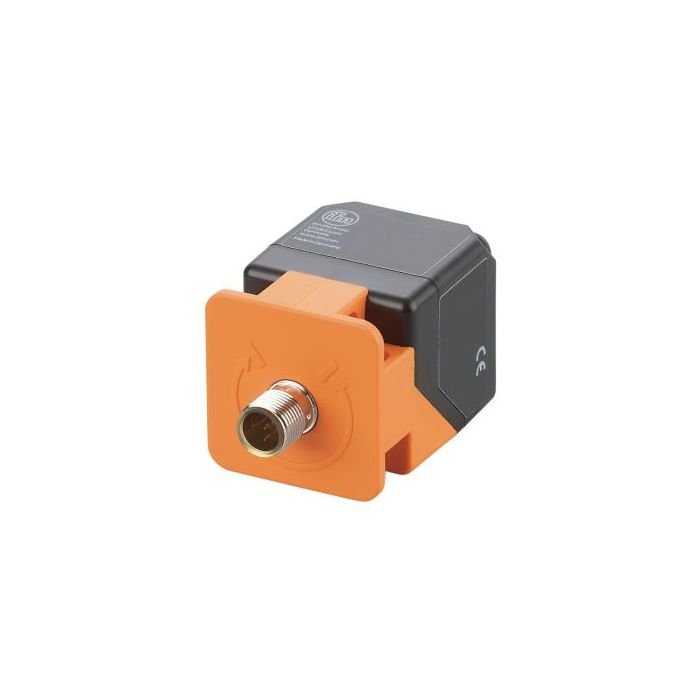

ANT513 \ efector 190 \ RFID (RFID read/write head) \DTRHF MCRWIDUS03 \ DE is an RFID reader and writer from ifm, featuring a durable construction that ensures long-lasting use. Its compact size makes it easy to install for industrial manufacturing processes.

Tech Data ANT513 \ efector 190 \ RFID (RFID read/write head) \DTRHF MCRWIDUS03 \ DE

• Application detection of objects on transport equipment
• Radio approval for USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; South Korea; Singapore; Ukraine; Malaysia; Brazil; Mexico; New Zealand; Vietnam
• Note on radio approval The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”
• Operating voltage[V] 24 DC
• Current consumption[mA] < 50
• Protection class III
• Operating frequency[MHz] 13,56
• RFID standard ISO 15693
• Travel speed[m/s] < 1
• Distance write/read head front[mm] 250
• Distance write/read head side[mm] 300
• Communication interface DATA / DTE10x
• Ambient temperature[°C] -20...60
• Storage temperature[°C] -25...80
• Protection IP67; IP69K
• Weight[g] 165.55
• Housing rectangular
• Sensing face 5 positions selectable
• Mounting flush mountable
• Dimensions[mm] 40 x 40 x 54
• Materials housing: PA; metal parts: stainless steel
