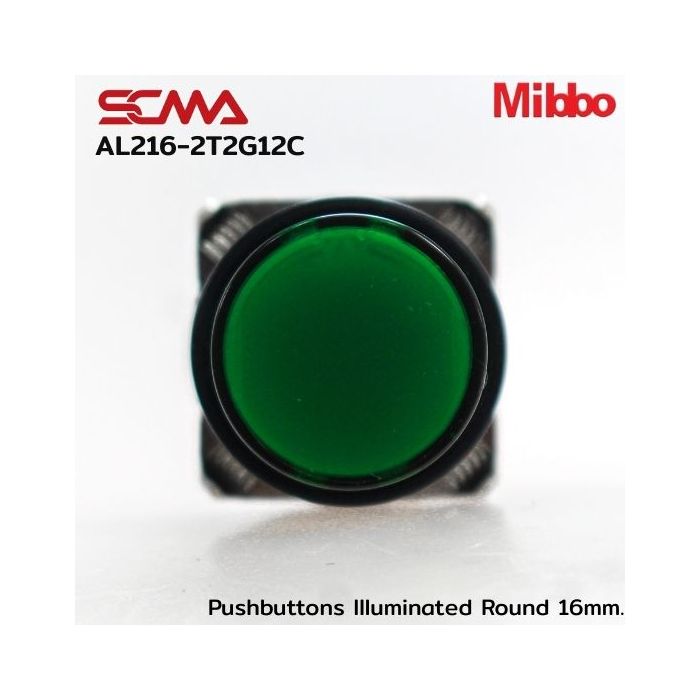

AL216-2T2G12C 24VDC Green Pushbuttons Illuminated Round 16mm Maintained Mibbo

Details AL216-2T2G12C 24VDC Green Pushbuttons Illuminated Round 16mm. Maintained Mibbo

AL216-2T2G12C 24VDC Green Pushbuttons Illuminated Round 16mm. Maintained Mibbo Illuminated Control Switch with LED status indicator, suitable for installation on control panels or machine control boards to operate ON/OFF or Reset functions. Available in Momentary Type (pressed-on/off) and Maintained Type (held-on/until pressed again).

General Features AL216-2T2G12C 24VDC Green Pushbuttons Illuminated Round 16mm. Maintained Mibbo

• Operation Type Momentary / Maintained
• Mounting Hole Ø16mm
• Button Color Green
• Lamp Voltage 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type High Brightness LED
• Service Life Over 30,000 hours
• Contact Type 1NO / 1NC / 2NO / 2NC (depending on model)
• Body Material Heat Resistant Plastic
• Protection Degree IP40 – IP65 (depending on model)
• Operating Temperature -25°C to +55°C

Key Features

• Illuminated Type with LED status indicator for clear visibility in all lighting conditions
• 16mm standard size, easy installation on small control panels
• Momentary Type suitable for momentary operation such as Start / Reset
• Maintained Type used for continuous ON/OFF operations such as Power ON / OFF
• Elegant design, durable with secure locking system to prevent loosening during use. Available in multiple colors to clearly indicate the functions of various buttons.
