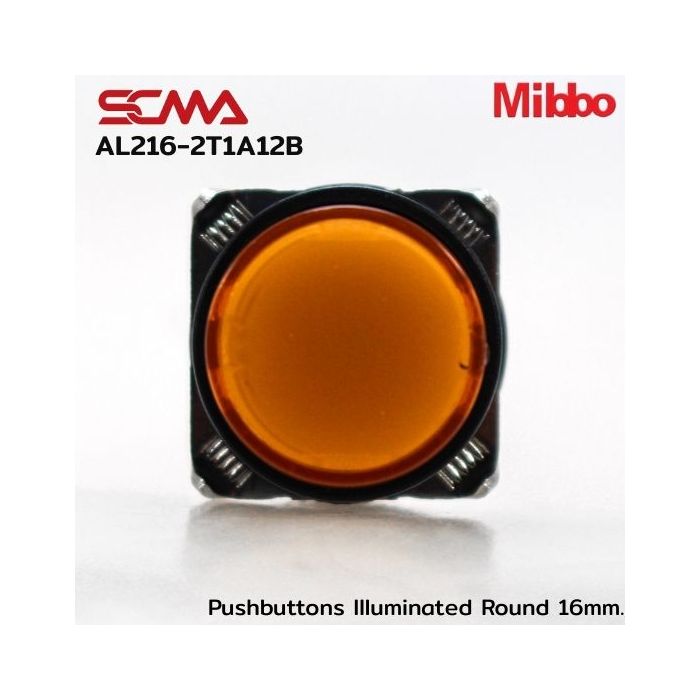

AL216-2T1A12B 12VDC Orange Pushbuttons Illuminated Round 16mm Momentary Mini

Details AL216-2T1A12B 12VDC Orange Pushbuttons Illuminated Round 16mm. Momentary Mibbo

AL216-2T1A12B 12VDC Orange Pushbuttons Illuminated Round 16mm. Momentary Mibbo are illuminated round push buttons with a diameter of 16mm, featuring built-in LED indicators for status display. They are suitable for installation on control panels or machine control boards and can be used to operate ON/OFF functions or reset systems. Available in both momentary type (press-on/off) and maintained type (hold-on/release-off).

General Features of AL216-2T1A12B 12VDC Orange Pushbuttons Illuminated Round 16mm. Momentary Mibbo

• Operation Type: Momentary / Maintained
• Mounting Hole Diameter: Ø16mm
• Button Color: Orange
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type: High Brightness LED
• Service Life: Over 30,000 hours
• Contact Type: 1NO / 1NC / 2NO / 2NC (depending on model)
• Body Material: Heat Resistant Plastic
• Protection Degree: IP40 – IP65 (depending on model)
• Operating Temperature: -25°C to +55°C

Key Features

• Illuminated Type with LED status indicators for clear visibility in all lighting conditions.
• A standard 16mm size, easy to install on small control panels.
• Momentary Type suitable for momentary operation such as Start / Reset.
• Maintained Type used for continuous ON/OFF operations such as Power ON / OFF.
• Beautifully designed and durable with a secure locking system to prevent loosening during use. Multiple colors are available to clearly identify the functions of different buttons.
