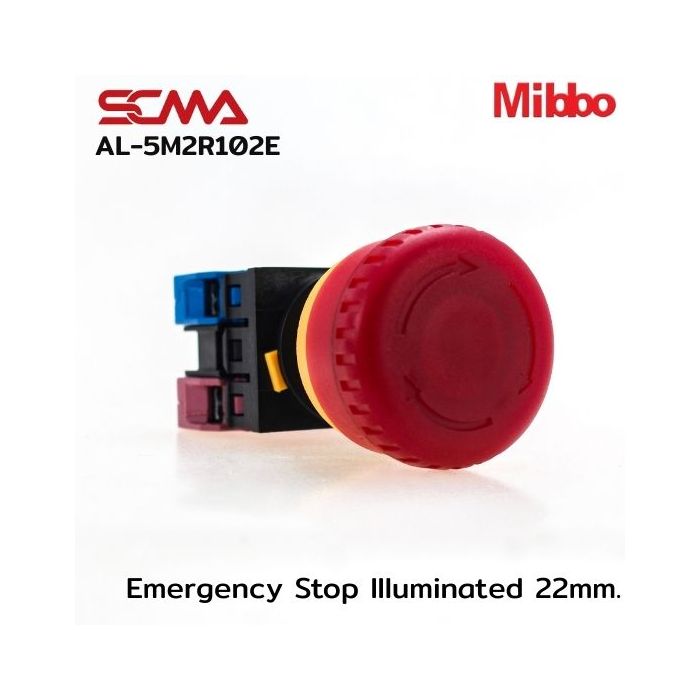

AL-5M2R102E Emergency Stop Illuminated 22mm. 220VAC/DC Red Mibbo

Details AL-5M2R102E Emergency Stop Illuminated 22mm. 220VAC/DC Red Mibbo

AL-5M2R102E Emergency Stop Illuminated 22mm. 220VAC/DC Red Mibbo – Emergency stop button with illuminated light for control panels and industrial machinery. The emergency stop switch (E-Stop) or emergency stop button is a standard size of Ø22mm, an important device used to cut off the electrical circuit or stop the operation of machines in emergencies. The illuminated model comes with LED lighting to help operators clearly see the position of the button. Suitable for control panels, automatic machinery, and industrial safety systems.

Technical Features AL-5M2R102E Emergency Stop Illuminated 22mm. 220VAC/DC Red Mibbo

• Type: Emergency Stop Switch (Illuminated)
• Mounting Hole Diameter: Ø22mm
• Operation Type: Push to Lock / Twist to Release
• Button Color: Red with LED light
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Contact Type: 1NO + 1NC or 2NC (depending on model)
• Body Material: Heat-resistant plastic
• Protection Degree: IP40 – IP65 (depending on model)
• Operating Temperature: -25°C to +55°C
• Standard: IEC / CE / RoHS
