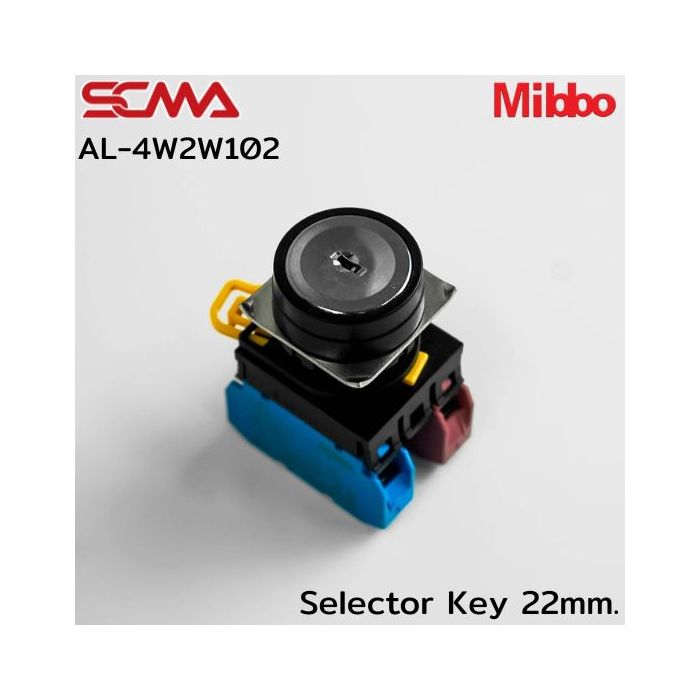

AL-4W2W102 Selector Key 22mm. 3P Maintained White Mibbo

Details AL-4W2W102 Selector Key 22mm. 3P Maintained White Mibbo

AL-4W2W102 Selector Key 22mm. 3P Maintained White Mibbo – Position selector switch for 2Gear / 3Gear control panel, or position selection switch is a standard size electrical control device of 22 mm used to select the operating mode (Function Mode Select) or limit machine control access only to those with keys. Suitable for control panels, industrial machinery, and automation systems. Available in both 2Gear (2 positions) and 3Gear (3 positions), with operation types including Momentary (push-on–release-off) and Maintained (push-on–hold-off).

Technical Features AL-4W2W102 Selector Key 22mm. 3P Maintained White Mibbo

• Mounting Hole Size Ø22mm
• Switch Position 2Gear / 3Gear
• Operation Type Momentary / Maintained
• Contact Type 1NO / 1NC or 2NO / 2NC (depending on model)
• Protection Degree IP40 – IP65 (depending on model)
• Operating Temperature -25°C to +55°C
• Standard IEC / CE / RoHS
