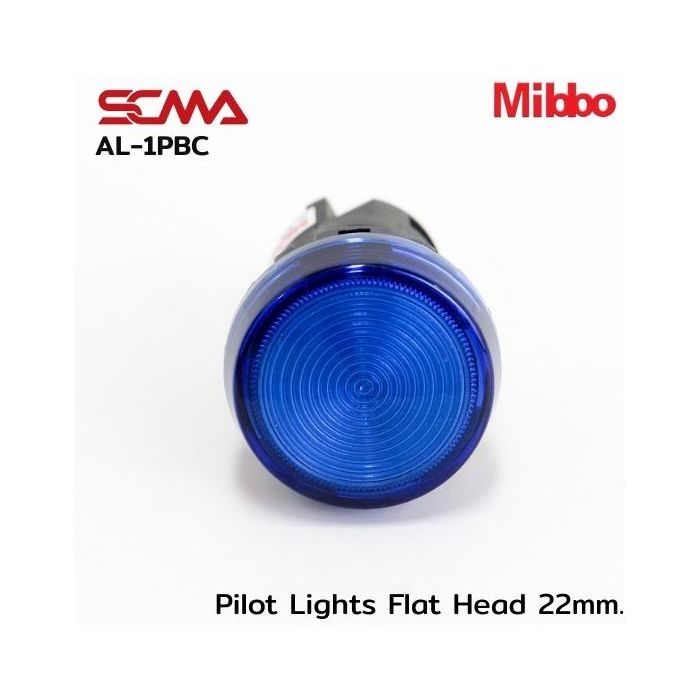

AL-1PBC Pilot Lights Flat Head 22mm. 24VAC/DC Blue

Details AL-1PBC Pilot Lights Flat Head 22mm. 24VAC/DC Blue MIBBO

AL-1PBC Pilot Lights Flat Head 22mm. 24VAC/DC Blue MIBBO – Status indicator lights for control panels and machinery. The 22mm Pilot Light is a standard-sized status indicator light (Indicator Lamp) used in control cabinets, machine control panels or automatic systems to help operators clearly see the system's status such as ON, OFF, Alarm, Fault or Ready. This model comes with both LED Illuminated and standard bulb (Incandescent) options supporting various AC/DC voltage levels.

Technical Features AL-1PBC Pilot Lights Flat Head 22mm. 24VAC/DC Blue MIBBO

• Type: Pilot Light / Indicator Lamp
• Mounting Hole Diameter (Mounting Hole): Ø22mm
• Shape: Round / Flat / Domed
• Lamp Color: Red, Green, Yellow, Blue, White
• Voltage Rating: 6V, 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type: LED High Brightness / Incandescent
• LED Lifetime: >30,000 hours
• Contact Rating: N/A (Used as a status indicator)
• Body Material: Heat-resistant ABS plastic
• Protection Degree: IP40 – IP65 (Depending on model)
• Operating Temperature: -25°C to +55°C
• Standard: CE / RoHS / IEC
