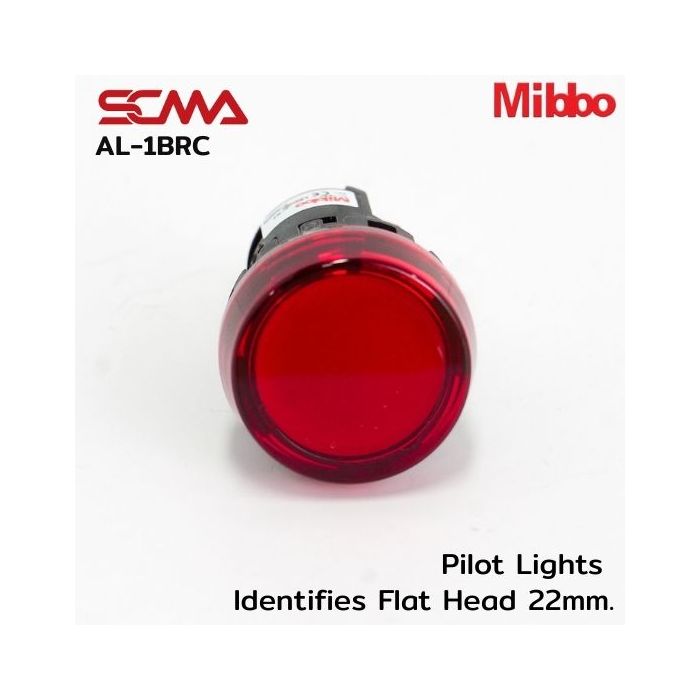

AL-1BRC Pilot Lights Identifies Flat Head 22mm. 24VAC/DC Red Mibbo

Details AL-1BRC Pilot Lights Identifies Flat Head 22mm. 24VAC/DC Red Mibbo

AL-1BRC Pilot Lights Identifies Flat Head 22mm. 24VAC/DC Red Mibbo – Status indicator lights for control panels and machinery. The Pilot Light 22mm is a standard-sized status indicator light (Indicator Light) measuring 22 mm, used in control cabinets, machine control panels or automatic systems to help operators clearly see the system's operational status such as ON, OFF, Alarm, Fault or Ready. This model comes with both LED Illuminated and standard bulb (Incandescent) options, supporting a variety of AC/DC voltage levels.

Technical Features AL-1BRC Pilot Lights Identifies Flat Head 22mm. 24VAC/DC Red Mibbo

• Type Pilot Light / Indicator Lamp
• Mounting Hole Ø22mm
• Shape Round / Flat / Domed
• Lamp Color Red, Green, Yellow, Blue, White
• Voltage Rating 6V, 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type LED High Brightness / Incandescent
• LED Lifetime >30,000 hours
• Contact Rating N/A (Used as a status indicator)
• Body Material Heat-resistant ABS plastic
• Protection Degree IP40 – IP65 (Depending on model)
• Operating Temperature -25°C to +55°C
• Standard CE / RoHS / IEC
