Aeropak AP-56S Temperature Controllers
Special Price THB 1,840.00 Regular Price THB 2,300.00
In stock
SKU
024891
In stock: 55 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Digital Temperature Controller, Temperature Controller, Panel Mount Temperature Sensor, Temperature Control, Temp control, Temp Installation, Temp Front of Cabinet, Analog Temperature Control
*Price does not include VAT

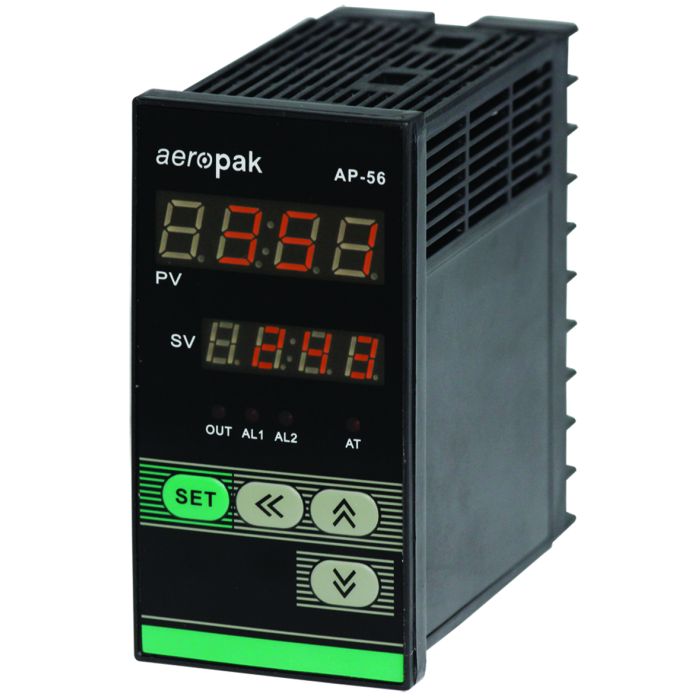

Aeropak Temperature Controllers Model AP-56S
Aeropak Temperature Controllers Model AP-56S for temperature measurement and control, displaying measurements on a 4-digit display screen. It supports various inputs (Multi-input) including Type K, J, E, N, PT100, mV, mA. The output is SSR(Voltage) with an accuracy of 0.5%FS +3 dgt. Control mode is PID and Auto-tuning, featuring two Alarm alerts. The device includes a power supply of 24Vdc/30mA.
Features of Aeropak Temperature Controllers Model AP-56S
- Supply voltage : 100~240V AC/DC 50/60Hz
- Total current : <30mA (220VAC/50Hz)
- Control mode process : PID, ON-OFF
- Accuracy : 0.5%FS
- Resolution : ±0.1°C
- Sampling rate : 2.5 times/second
- Control output : Relay output load: 3A/250VAC.
- Transmit output : 4~20mA, load 600Ω max.
- Aux. voltage output : DC 24V <30mA.
- Alarm output : Relay output load: 1A/250VAC.
- Panel protect level : IP65
- Ambient temperature : 0~50°C, 45~80%RH.
- Stock environment : -10~60°C, 45~80%RH.
- Size : 48x96x98 millimeters
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 1,840.00 |
