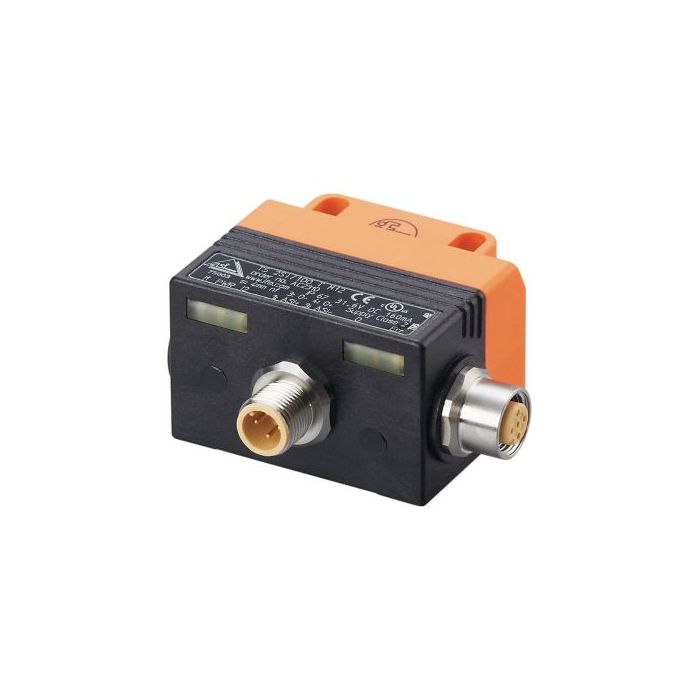

AC2310 efector 180 Valve sensor DUAL SENSOR T5 2SI 1DO T M12 DE

Details of AC2310 \ efector 180 \ Valve sensor (Valve position detection sensor for AS-interface system) \DUAL SENSOR T5 2SI 1DO T M12 \ DE

AC2310 \ efector 180 \ Valve sensor (Valve position detection sensor for AS-interface system) \DUAL SENSOR T5 2SI 1DO T M12 \ DE A valve position detection sensor for the AS-interface system, easy to install in any area and suitable for use in all weather conditions

Technical data AC2310 \ efector 180 \ Valve sensor (Valve position detection sensor for AS-interface system) \DUAL SENSOR T5 2SI 1DO T M12 \ DE

• Electrical design AS-i
• Sensing range[mm] 4
• Operating voltage[V] 26.5...31.6 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 160
• Ambient temperature[°C] -20...70
• Protection IP67
• AS-i version 2.1
• Extended addressing mode no
• AS-i I/O configuration[hex] 7
• AS-i ID code[hex] F.F
• AS-i certificate 75003
• Weight[g] 179.5
• Mounting non-flush mountable
• Dimensions[mm] 55 x 60 x 35
• Materials PBT; PC
